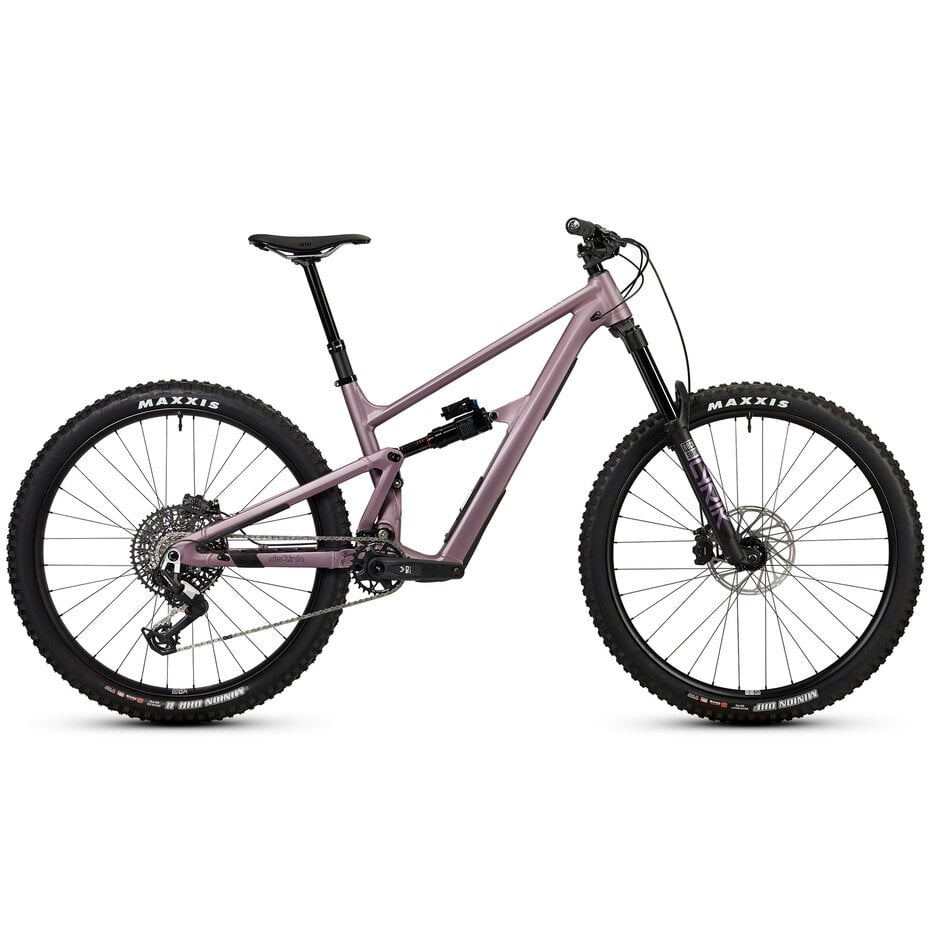

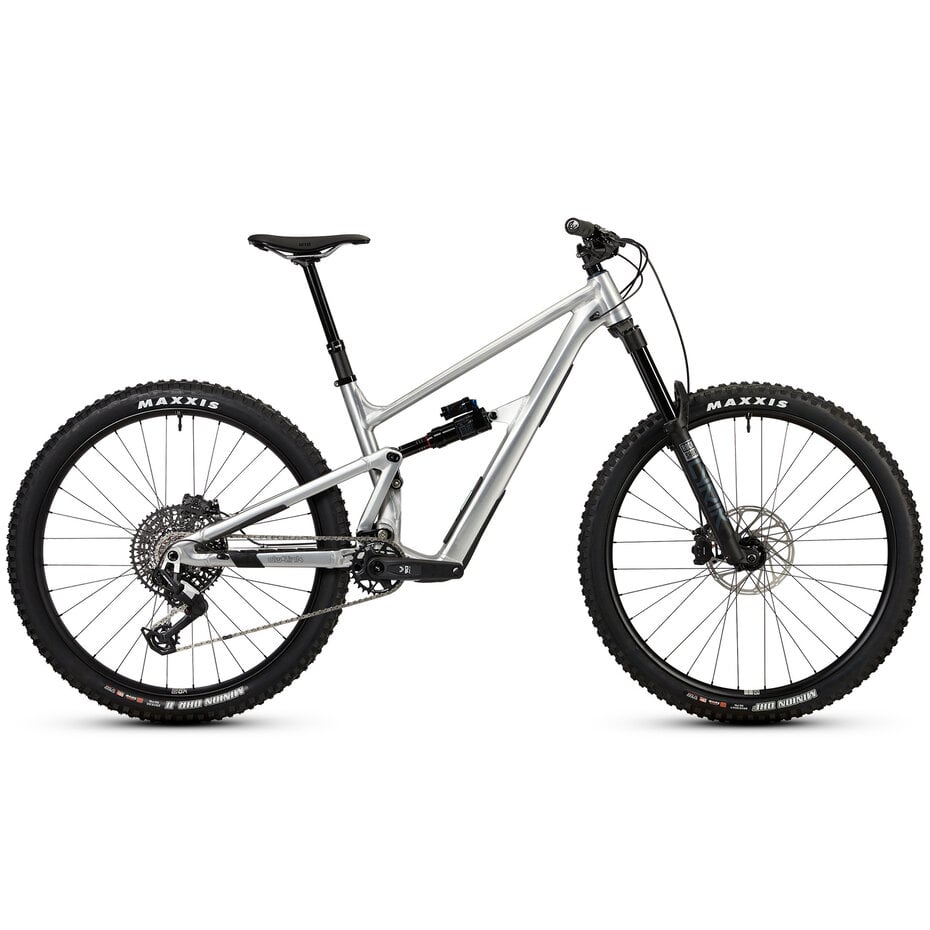

Name: Ibis Ripmo AF V2
Brand: IBIS
SKU: 210000014161
Price: 6299.0 CAD
Availability: OutOfStock

$6,299.00

Frais d'expédition calculés lors du passage à la caisse.

En stock
Inventaire sur le chemin

30-Day return period

Quick Shipping

Support a rider owned shop

Recycled packaging

With 160mm front and 150mm rear travel, dw-link suspension, and Flip chips for using a 27.5” or 29” rear wheel, it’s built for steep descents, chunky terrain, and climbs better than it should. Progressive geometry and a durable frame make it ideal for riders who push hard and want a bike that can keep up, lap after lap. Whether you're racing enduro, exploring alpine singletrack, or sending the local lines, the Ripmo AF delivers the same legendary performance as its carbon sibling. The Ripmo AF has all of the same features as the carbon bike; in-frame storage with two bags, coil compatibility, progressive geometry, all at a more approachable price.

Deore Build Kit


Frame	Ripmo AF V2 150mm
Suspension	Suspension
Fork	RockShox Lyrik 15QRx110 160mm
Shock	RockShox Super Deluxe Select+ 230x60mm
Brakes	Brakes
Brakes	Shimano Deore M6120 4-Piston
Brake Rotors	Shimano RT-66 6B 200mm
Drivetrain	Drivetrain
Derailleur	Shimano Deore M6100 SGS
Shifter	Shimano Deore M6100
Cranks	Shimano Deore M6120 24mm Spindle
Cassette	Shimano Deore M6100 10-51T
Bottom Bracket	Shimano MT501
Chain	KMC X12
Tensioner / Guide	-
Controls	Controls
Handle Bar	Ibis Aluminum 31.8mm Width 780mm
Stem	Ibis 31.8mm (Length S-M:40mm, XM-XL:50mm)
Grips	Lizard Skins Single Clamp
Headset	Cane Creek 50
Saddle	WTB Silverado Fusion CrMo 142mm
Dropper Post	KS Vantage (S:110-140mm, M-XM:140-170mm, L-XL:180-210mm)
Dropper Lever	KS
Wheels	Wheels
Wheelset	Ibis Blackbird Send Alloy (F:Send I, R:Send II) Rims, Ibis Hubs
Front Tire	Maxxis DHF EXO+ TR 29x2.5"
Rear Tire	Maxxis DHRII EXO+ TR 2.5"

Eagle 90 Build Kit


Frame	Ripmo AF V2 150mm
Suspension	Suspension
Fork	RockShox Lyrik 15QRx110 160mm
Shock	RockShox Super Deluxe Select+ 230x60mm
Brakes	Brakes
Brakes	SRAM Maven
Brake Rotors	SRAM Centerline 6B 200mm
Drivetrain	Drivetrain
Derailleur	SRAM Eagle 90 Transmission
Shifter	SRAM Eagle 90 Transmission
Cranks	SRAM Eagle 90 Transmission DUB 30T (S-M:165mm, XM-XL:170mm)
Cassette	SRAM XS 1275 Eagle Transmission 10-52T
Bottom Bracket	SRAM DUB BSA
Chain	SRAM GX Eagle Transmission
Tensioner / Guide	-
Controls	Controls
Handle Bar	Ibis Aluminum 31.8mm Width 780mm
Stem	Ibis 31.8mm (Length S-M:40mm, XM-XL:50mm)
Grips	Lizard Skins Single Clamp
Headset	Cane Creek 50
Saddle	WTB Silverado Fusion CrMo 142mm
Dropper Post	KS Vantage (S:110-140mm, M-XM:140-170mm, L-XL:180-210mm)
Dropper Lever	KS
Wheels	Wheels
Wheelset	Ibis Blackbird Send Alloy (F:Send I, R:Send II) Rims, Ibis Hubs
Front Tire	Maxxis DHF EXO+ TR 29x2.5"
Rear Tire	Maxxis DHRII EXO+ TR 2.5"

Geometry

(mm)		S	M	XM	L	XL
A	Reach	436	456	478	506	540
B	Stack	616	622	633	643	654
C	Head Tube Length	85	95	110	125	140
D	Head Tube Angle	64.5°	64.5°	64.5°	64.5°	64.5°
E	Front Center (29"/MX)	760 / 763	784 / 787	813 / 816	848 / 851	889 / 892
F	Wheel Base	1195	1219	1249	1286	1329
G	Rear Center (29"/MX)	435 / 432	435 / 432	436 / 433	438 / 435	440 / 437
H	BB Drop (29")	36	33	30	27	24
I	BB Height (MX)	338	341	344	349	350
J	Seat Tube Angle	77.0°	76.5°	76.5°	77.0°	77.5°
K	Seat Tube Length	395	400	415	457	477
L	Bike Stand Over	693	734	757	772	784
M	Effective Top Tube Length	578	605	630	655	685
N	Offset	44	44	44	44	44
O	Axle To Crown	575	575	575	575	575
P	Rider Height	5'0" - 5'6"	5'5" - 5'9"	5'8" - 6'0"	5'11" - 6'3"	6'2" - 6'7"

Specifications

Fork Size	160mm
Shock Size / Travel	230x60mm / 150mm
Shock Compatibility	Coil Shock Compatible
Seatpost Diameter	34.9mm
Headset Size	Upper: ZS44 / Lower: ZS56
Bottom Bracket	Threaded (73mm English Threaded)
Boost Axles	148mm rear / 110mm front
Crank Chainline	55mm
Rear Brake Mount	180mm Post Mount, Max Rotor Size 220mm
Derailleur Hanger	SRAM UDH
Lifetime Warranty	Frame and Bushings Replacement
