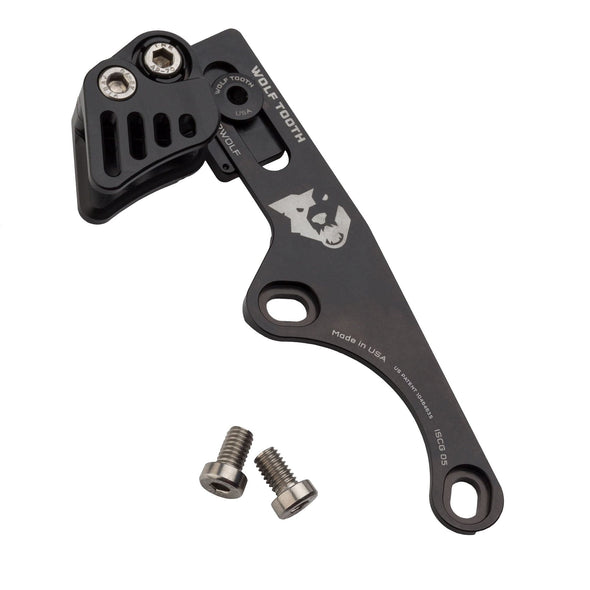

Wolf Tooth Components, Gnarwolf, Chain Guide, ISCG 05, 28/36, Black

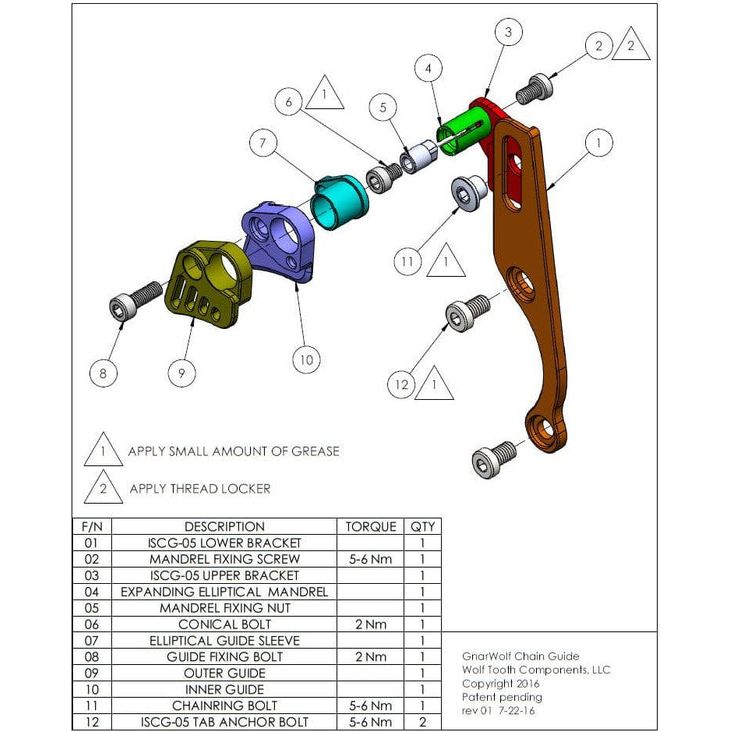

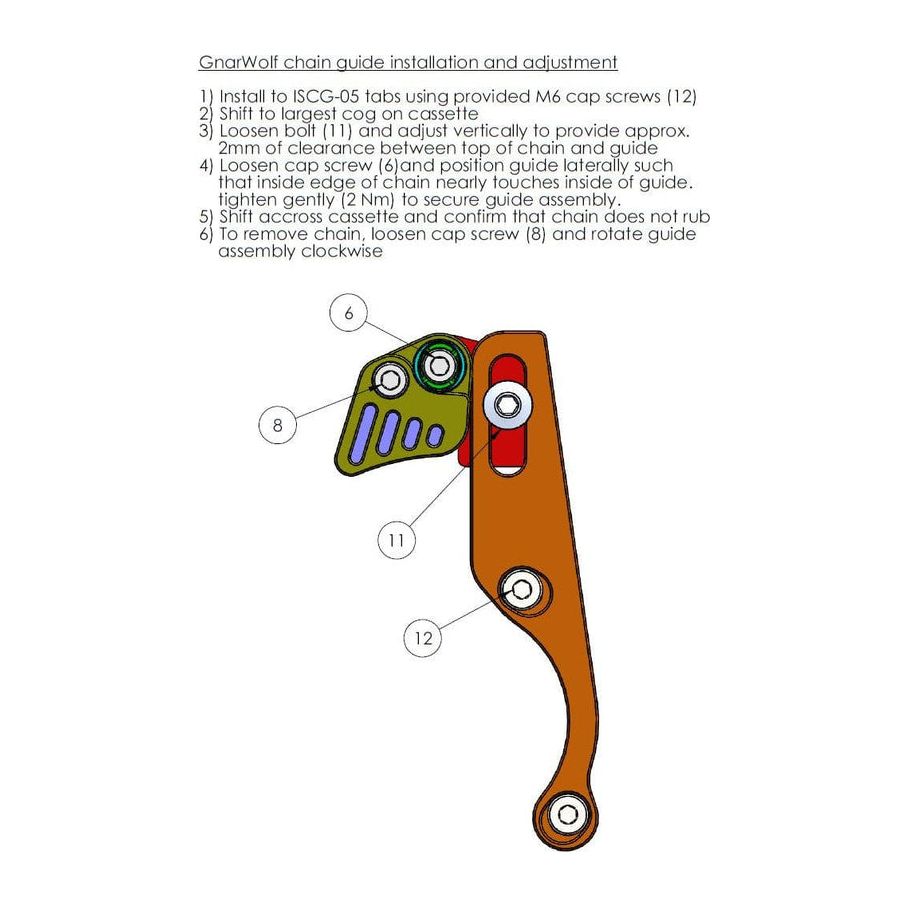

If you are a rider that fearlessly takes the tough lines and can't afford to drop a chain, the Wolf Tooth GnarWolf® chainguide is for you. Designed specifically for any bike that has ISCG 05 Mount and a 1x wide/narrow chainring. The GnarWolf will keep your chain glued to your chainring in the roughest and muddiest of conditions. Refer to image on this page for installation and adjustment instructions.

• 8mm of chainline adjustment via our GuideLock quick adjustment system. No shims required.

• Infinite vertical adjustment between 28t and 36t for round chainrings and  28t-34t oval chainrings

• Loosen one screw to flip the guide out of the way for easy chain removal without losing any of the guide's adjustments

• All adjustments made with common 4 mm hex key

• Designed for the rigors of Enduro, heavy trail, mud and even DH riding, the Wolf Tooth engineers made this guide extremely stiff and strong while keeping it light at 44g

• Specific guide shaping is optimized for use with oval and round chainrings

• Installation takes just a few minutes – no need to remove your crank arms

Compatibility

• Designed to fit on any bike with an ISCG 05 Mount

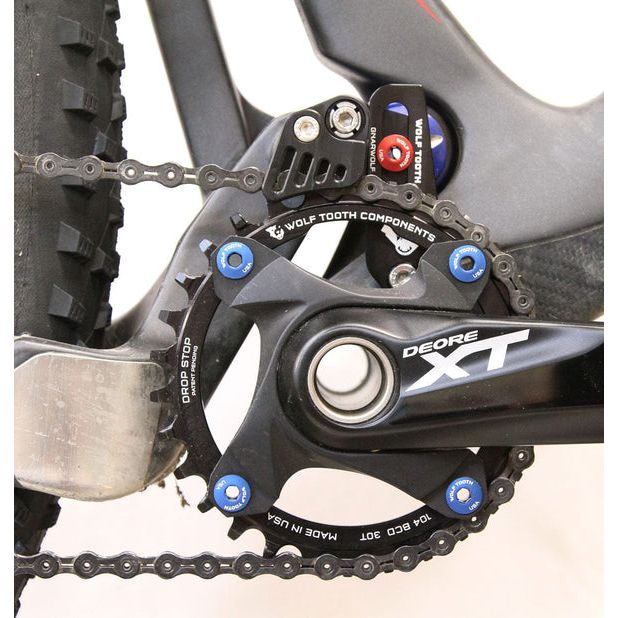

• Installation shown in photos on this page
• Optimized for use with both elliptical and round chainrings
• Round chainrings 28t-36t or oval chainrings 28t-34t
• For 1x use only
• Minimum distance of 10 mm between crank and center of ring
• Not compatible with crankset mounted bashrings
• Due to frame and bike geometry there will be some bikes that need modifications or flat out won't work. Here are the known exceptions:
• Ibis Mojo 3 - will not work
• Ibis Ripmo - will not work
• Ibis Ripley - will not work
• Specialized Stumpjumper 2016-2017 models require 1 mm of spacers (washers will work) between the frames ISCG05 mounts and the guide (the guide interferes with the frame otherwise).
• Evil The Following - will not work (upper swing arm interferes)
• Santa Cruz Tallboy  - will not work
