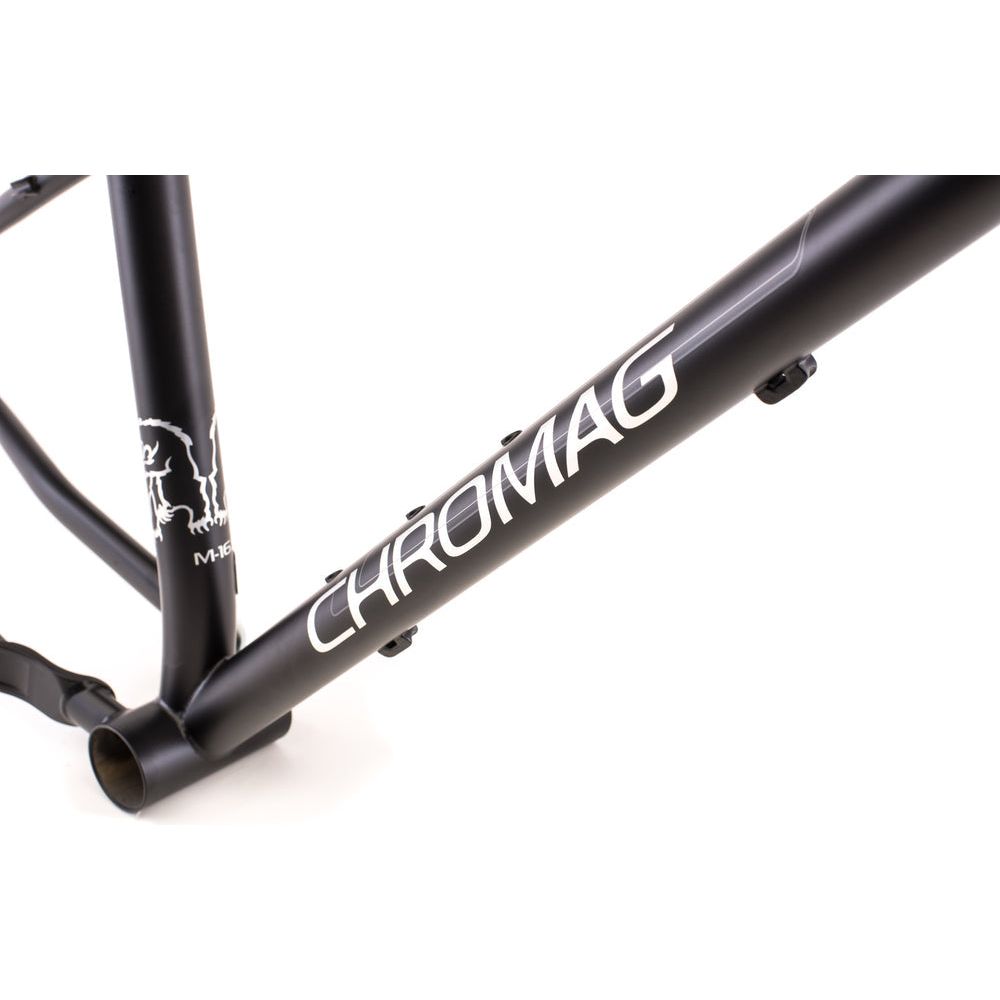

Chromag Rootdown G2 Build Smith Creek Cycle Downtube

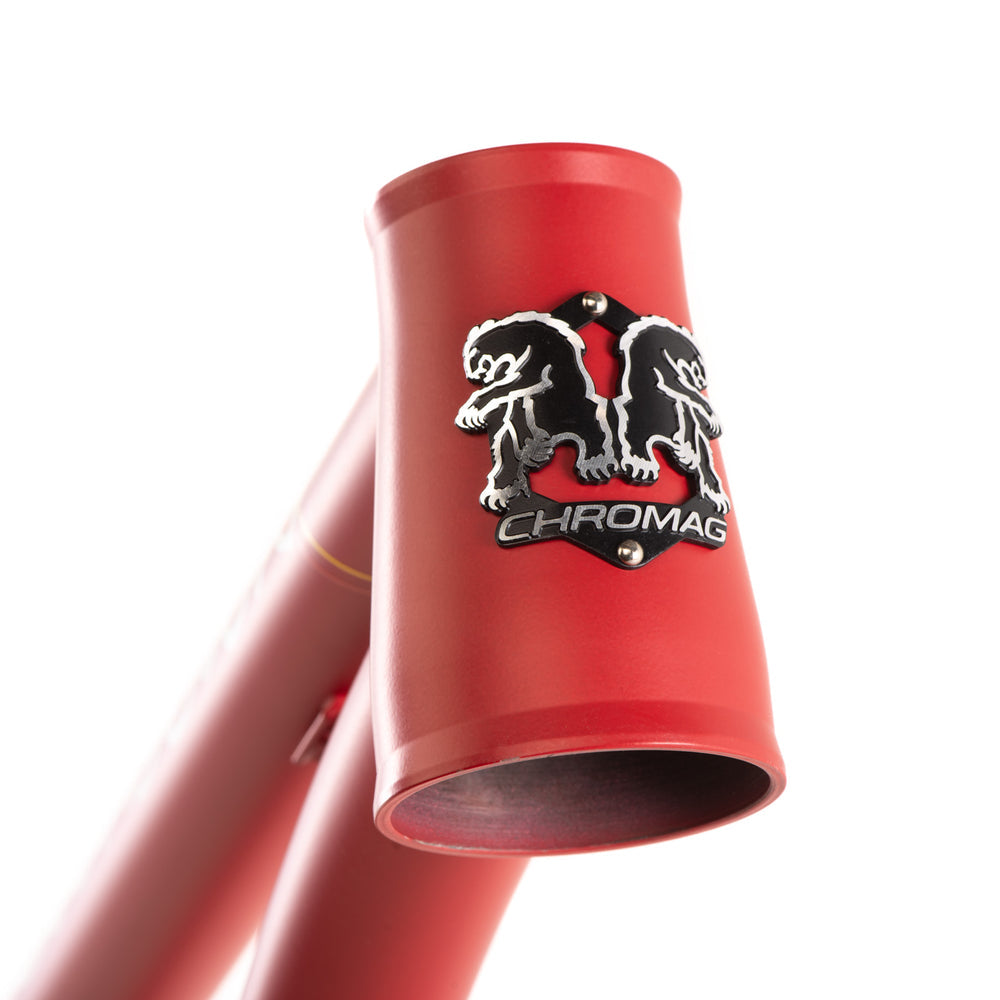

Chromag Rootdown G2 Build Smith Creek Cycle Headtube

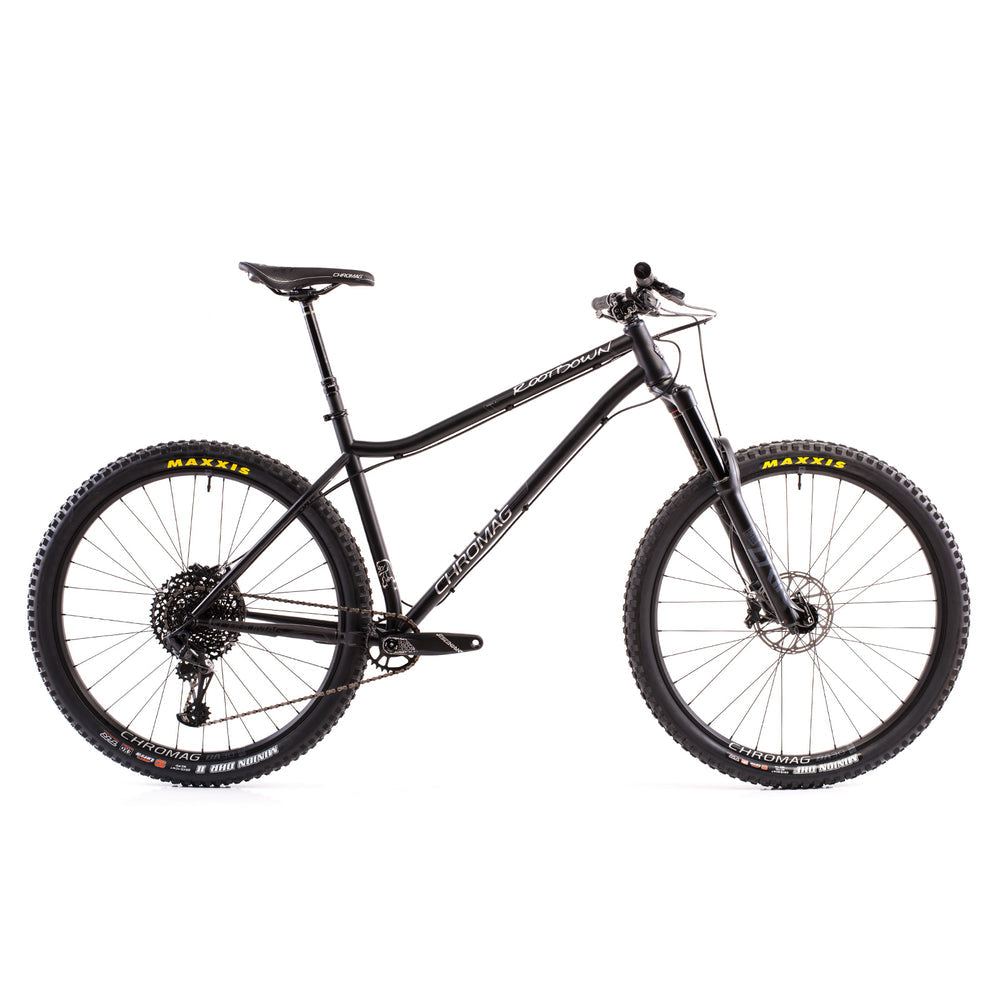

Chromag Rootdown G2 Build

Regular price$4,650.00
/
Shipping calculated at checkout.

Color
Size
  • In stock, ready to ship
  • Inventory on the way

This is a special order product, unless noted that it is in-stock please allow additional 2-3 weeks for fulfillment time.

Contact info@smithcreekcycle.ca for confirmation on availability and colours.

The Rootdown is hands down Chromag's best selling bicycle.

Built with our custom-drawn tubes and featuring a 12x148mm Boost rear end and stealth post routing, this is the evolution of Chromag frame design in 29er form, compatible with tires up to 29" x 2.5 and 27.5+ up to 2.8 wheels. An agile ascender and a dominant descender that is ready for anything.

4130 Chomoly

Almost all Chromag frames are made from quality 4130 chromoly steel tubing. Chromoly is an abbreviation for chromium-molybdenum indicating the materials that the steel is alloyed with.

The added chromium helps increase the steels hardenability and also provide some corrosion resistance.
The molybdenum helps to increase the toughness of the steel.

It has a high tensile strength but is also malleable which is what gives our frames their notorious ride quality and feel. Chromoly is often used when more strength is required than that of mild carbon steel.

It falls under the AISI (American Iron & Steel Institute) 41XX designations which is where the “41” comes from. The “30” indicates it contains approximately 0.30% carbon by weight.

Chromoly is much stronger than traditional 1020 steel and it has a higher strength to weight ratio and high tensile strength, which means we can use less material and achieve a product that can withstand the abuse that riders love to throw at it.

Geometry

Chromag Rootdown Sizing

Frame Size S M M/L L XL
STACK 630 630 639 648 657
REACH 421 446 463 487 503
EFFECTIVE TOP TUBE 578 603 622 648 667
HEAD TUBE 95 95 105 115 125
WHEEL BASE 1177 1202 1223 1251 1272
BB DROP 50.8 50.8 50.8 50.8 50.8
BB HEIGHT 320 320 320 320 320
STAND OVER 677 714 738 762 799
CHAIN STAY 420 420 420 420 420
SEAT TUBE 368 406 431 456 494
MAX POST INSERTION* 188 226 251 276 314
HEAD ANGLE 64°
SEAT ANGLE 76°
WHEEL SIZE 29''



Specs

PARTS G2 BETTER BUILD
FORK Rock Shox Lyrik Select+ 160mm Boost 110x15mm
STEM Chromag HiFi 40mm
HANDLEBAR Chromag OSX 25mm Rise, 800mm Wide
HEADSET Cane Creek Forty ZS
CRANK SRAM GX 170mm
BRAKES SRAM G2 RSC
ROTORS SRAM Centerline 180mm
SHIFTERS SRAM GX Eagle
CASSETTE SRAM GX Eagle 10-52t
REAR DERAILLEUR SRAM GX Eagle
WHEELSET Chromag 29" Phase30 Rims / Chromag R4 Hubs. (Magna40 Rims for 27+)
TIRES Maxxis Minion DHF/DHR
SEATPOST RockShox Reverb
(150mm - S, M, M/L) (175mm - L) (200mm - XL)
SADDLE Chromag Trailmaster DT
GRIPS Chromag Format
CHAIN SRAM GX Eagle
PEDALS -
