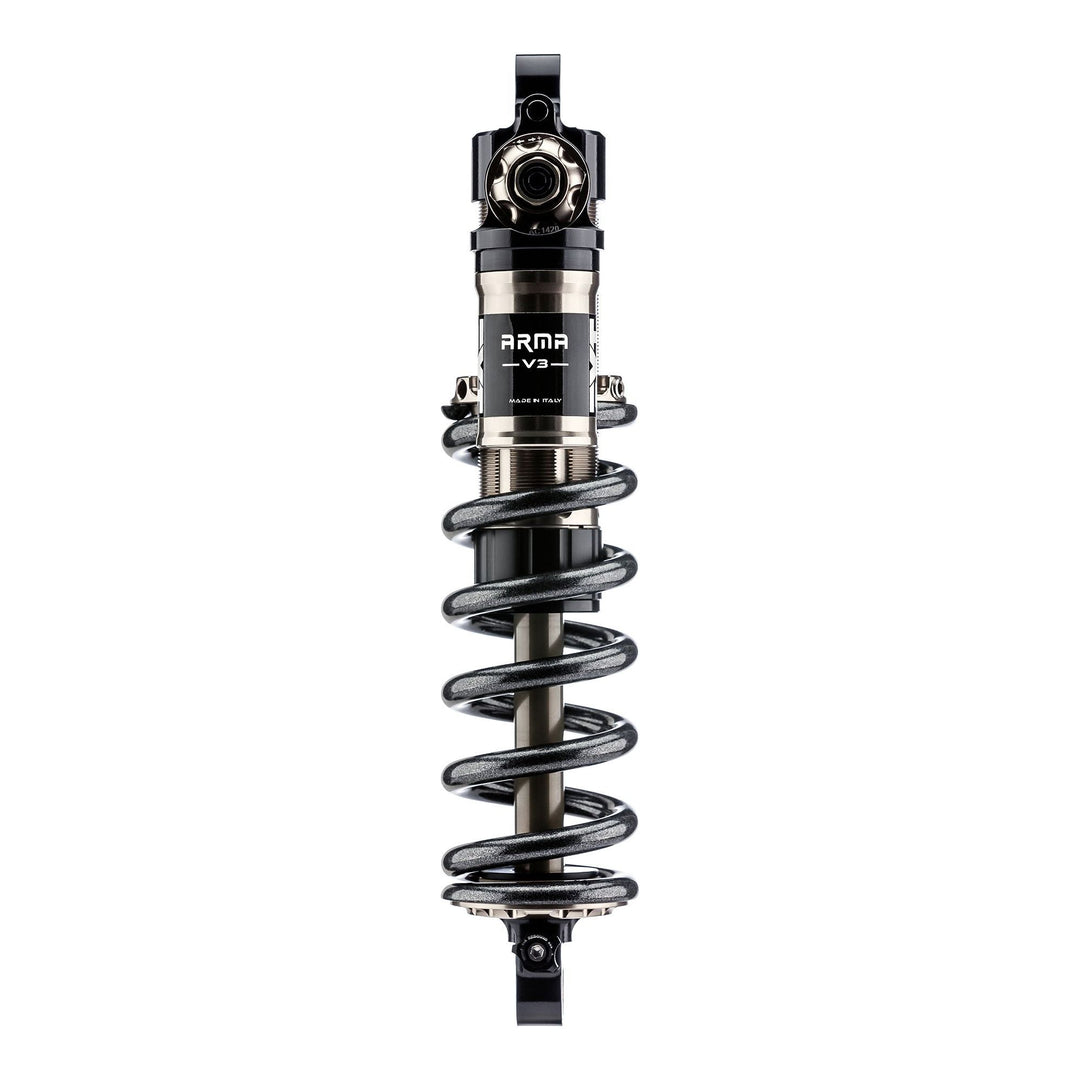

EXT Arma HBC V3

Name: EXT Arma HBC V3
Brand: Extreme Racing Shox
SKU: 30202-225x75
Price: 1022.0 USD
Availability: InStock

Regular price$1,022.00

Shipping calculated at checkout.

Trunnion

Yes

Size

225x75

205x60

250x72.5

250x75

230x57.5

230x60

230x62.5

230x65

267x87

226x67

Low stock - 4 items left
Inventory on the way

Description

Metric and Imperial sizing – Standard or Trunnion mount
4 way adjustable (LSC-HSC-LSR-HBC)
High flow Ø29 mm main piston
24 mm valve piston
14 mm shaft
Engineered rebound circuit to separate bump and rebound oil flow
Ultra low-friction coating
User adjustable HBC technology with wider range
Very low reservoir pressure for maximum sensitivity (55 PSI)
Full custom hydraulic setup available
No cavitation
Very low hysteresis for high dynamic response
High turbulent flow for very low temperature depending
Low friction Energize seal
Thinner bottom-out bumper

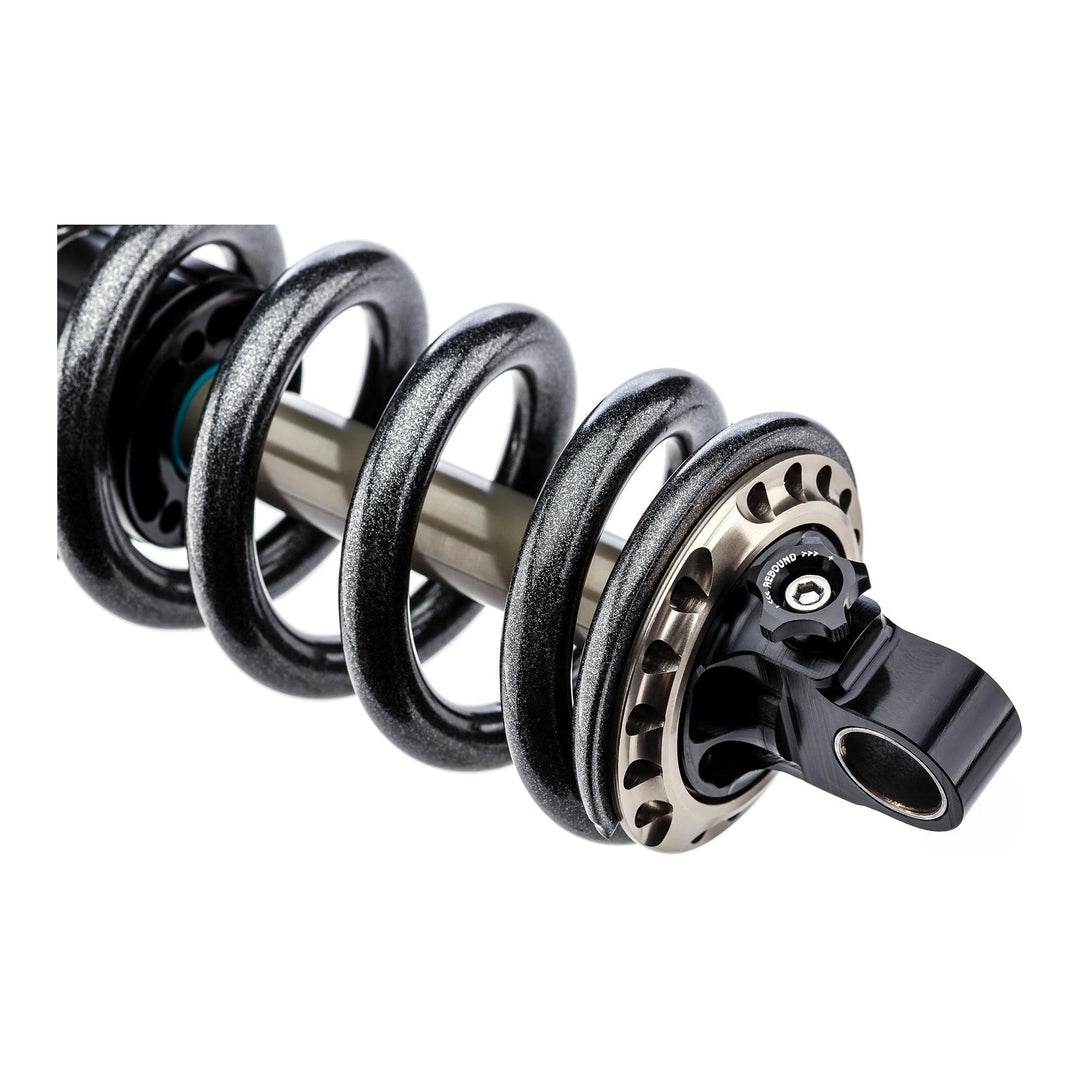

New rebound knob for easy spring swap

Weight: 705 gr.
(241×74 mm. eye to eye mount – 300 lbs. spring)

AVAILABLE LENGTHS / STROKE

STANDARD
222 / 67 mm
241 / 74 mm
267 / 87 mm
230 / 57.5 mm
230 / 60 mm
230 / 62.5 mm
230 / 65 mm
250 / 70 mm
250 / 72.5 mm
250 / 75 mm

TRUNNION
205 / 57.5 mm
205 / 60 mm
205 / 62.5 mm
205 / 65 mm
225 / 70 mm
225 / 72.5 mm
225 / 75 mm

Most variants are built to order in Italy, with about a 3-4 week wait between placing of order and delivery to you. We keep some common sizes in stock and these can be re tuned to your bike/person. If you are interested in a shock, the best thing to do is to send us a message and we can go from there.

We are also an authorized service centre for EXT, get in touch if you need your shock serviced or retuned!

All shipping within Canada will be Via UPS Ground or Canada Post unless otherwise specified upon checkout.

All shipping to the USA will use DHL, USPS OR UPS

Please see our Shipping & Returns page for more information
