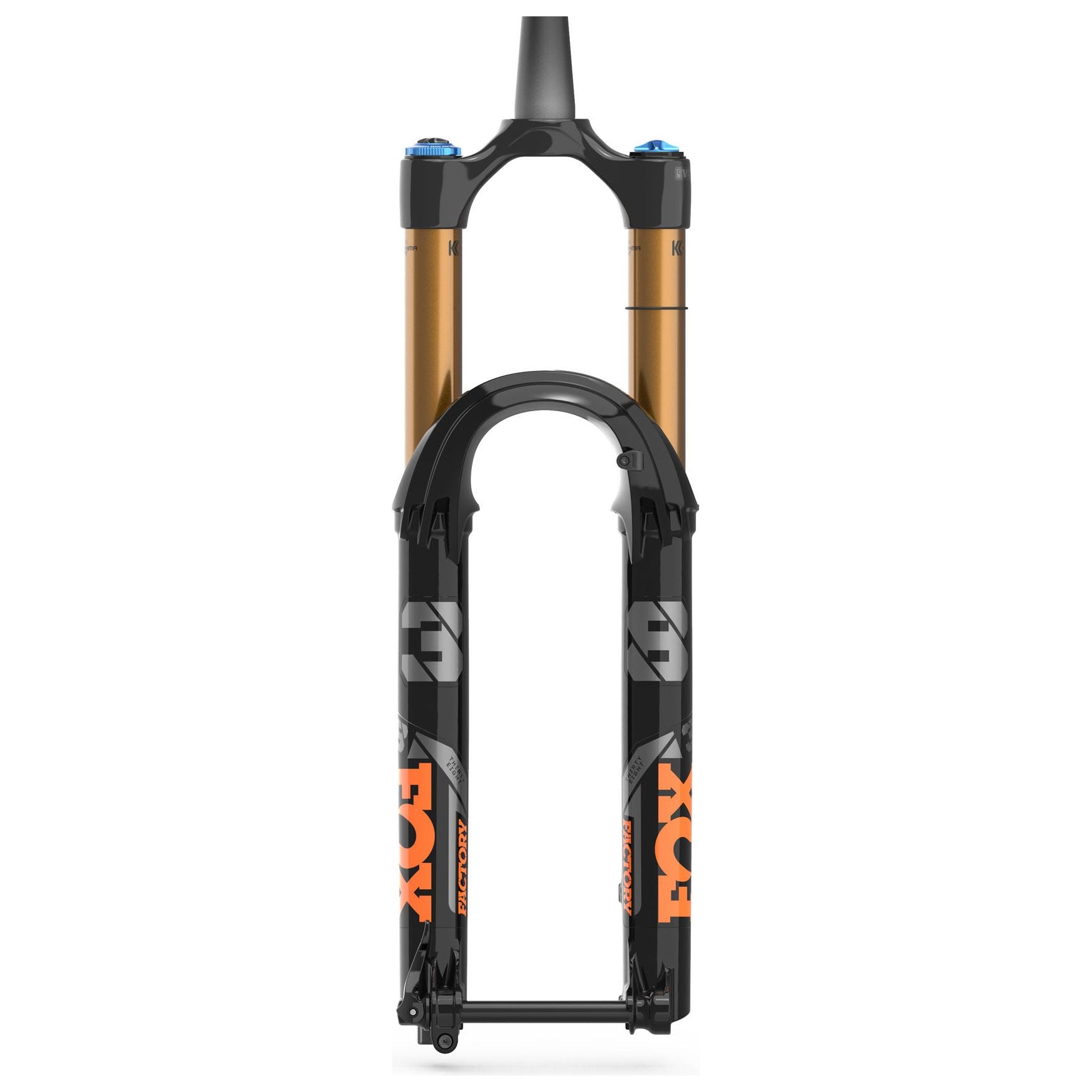

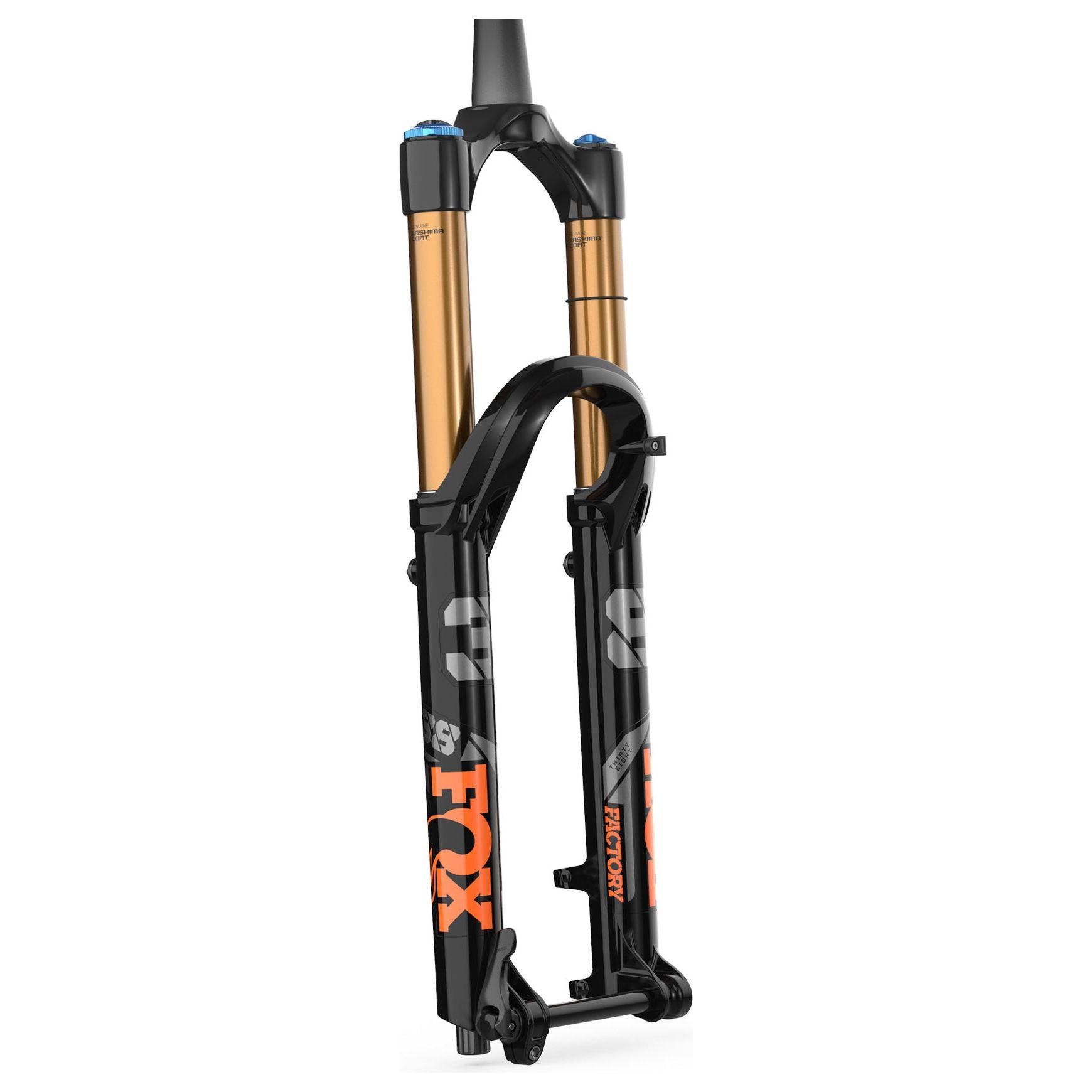

2022,FOX 38, K, FLOAT, 29in, F-S, 180, Grip 2, HSC, LSC, HSR, LSR, Shiny Blk, Orange/Gloss Blk Logo, 15QRx110, 1.5 T, 58HT, 44mm Rake, AM

"Factory” says it all – feature-packed and designed to exceed the demands of our Factory-level riders. What we sell is what they race. Factory Series products feature slippery smooth, ultra-durable Genuine Kashima Coat.

THE HARD HITTING LONG-TRAVEL ENDURO SPECIALIST Optimized for 160-180mm of travel and packing the same revolutionary feature set as the new 36, the 38 redefines what you think a long travel single crown fork is capable of, and sets a new benchmark for confidence, performance, and durability. Welcome to the big time.

TECH SPECS:

Model Year: 2022
Collection: 38
Stanchion Finish: Kashima
Chassis: Standard
Wheel Size: 29"
Series: Factory
Travel: 180mm
Damper: Grip2
Adjustment: HSC, LSC, HSR, LSR
Color: Shiny Blk
Decal: Orange/Gloss Blk
Axle: 15QRx110
Steerer: 1.5 T
Rake: 44mm

GRIP 2

Our GRIP2 damper is the benchmark for unparalleled ride quality and ultra-precise adjustability. GRIP2 includes our patented Variable Valve Control (VVC) technology which allows for external fine-tuning of suspension performance. GRIP2 achieves with the twist of a knob what typically requires the time consuming and complicated task of completely disassembling and reassembling the fork.

FLOATING AXLE

Floating axles might look similar to other axles, but in fact they offer a distinct performance advantage due to their unique ability to match the exact width of the fork’s wheel mounting surface precisely to the front hub flange spacing, thus creating perfect chassis alignment and eliminating unwanted friction between the upper and lower fork legs. Floating axles provide much smoother suspension movement throughout the entire range of the fork’s travel, notably improving sensitivity and overall ride quality.

LOWER LEG BYPASS CHANNELS

As a fork compresses, the air volume within the lower legs decreases, increasing air pressure. The more the fork compresses, the more pressure increases. This effect can have the unintended consequence of preventing full travel from being achieved. Our lower leg channels help alleviate this issue by dramatically increasing air volume within the lower legs and thereby reducing the amount of additional unintended pressure ramping.

BLEEDERS

Our lower leg bleeders allow for atmospheric pressure equalization at the simple press of a button. Pressure build-up in the lower legs dramatically decreases fork performance, preventing full travel from being achieved, and diminishing small bump sensitivity and responsiveness.

LOWER LEG ARCH

Stiffness-to-weight is the ultimate metric for bicycle design. Engineers invest countless hours poring over every ounce of material in an effort to optimize this critical ratio. Our all-new lower leg design pulls out all the stops, shaving every possible gram while making sure not to compromise stiffness or strength requirements of modern enduro and gravity style riding.

FLOAT EVOL

EVOL technology increases negative air spring volume, optimizing small bump sensitivity. EVOL’s linear spring curve delivers plushness off the top, extra mid-stroke support, and more tunable bottom-out progression.

ELLIPTICAL STEERER

The 38’s elliptical steer tube is one of many ways we’ve further optimized stiffness-to-weight, placing more material only where it is needed, and eliminating every ounce of it where it’s not.
