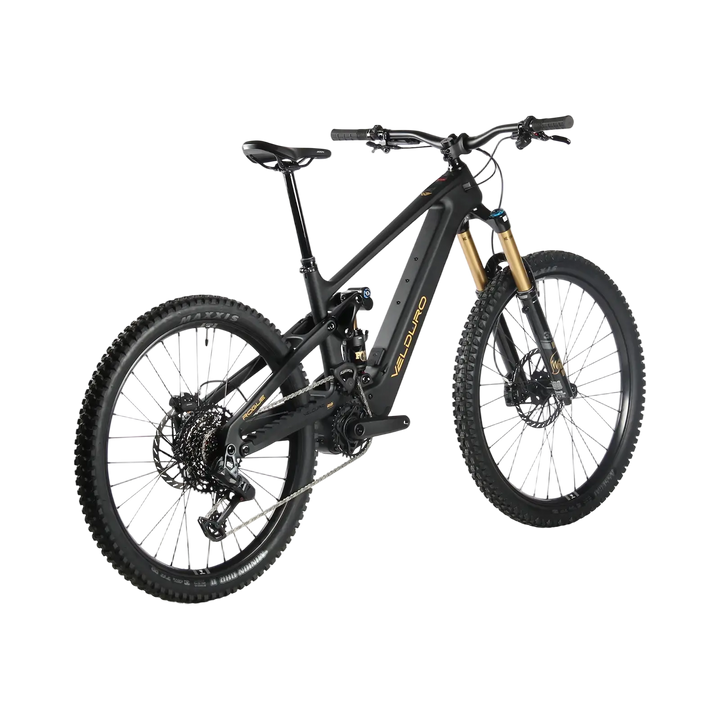

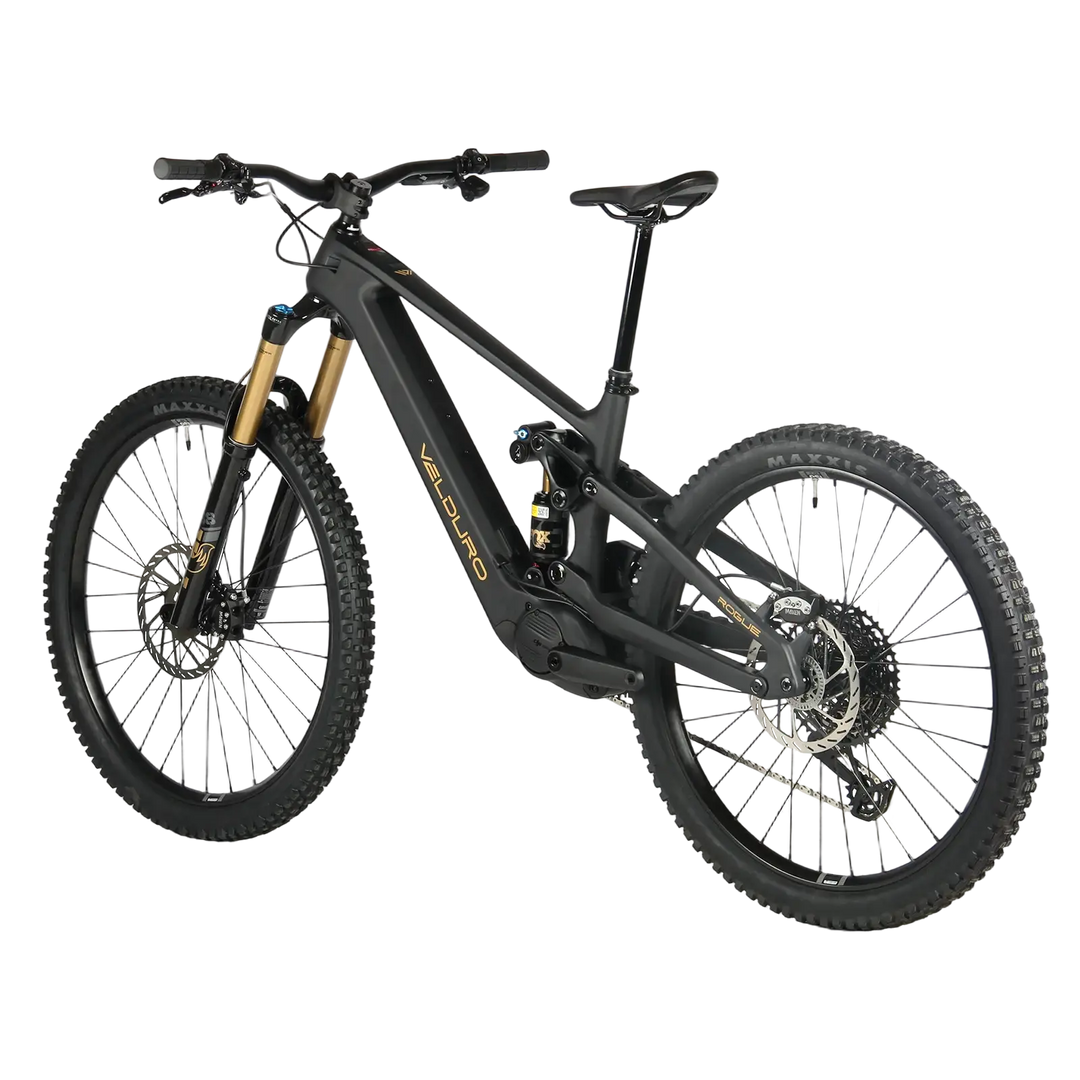

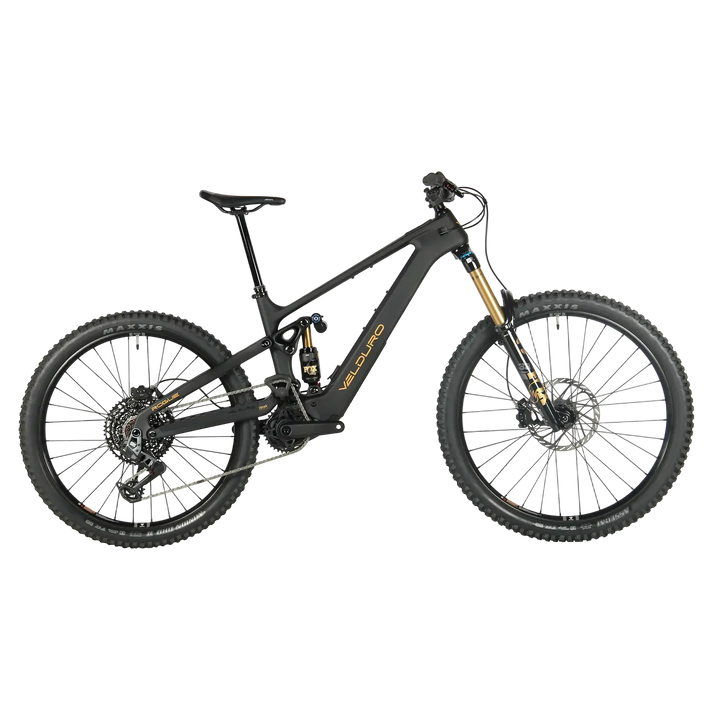

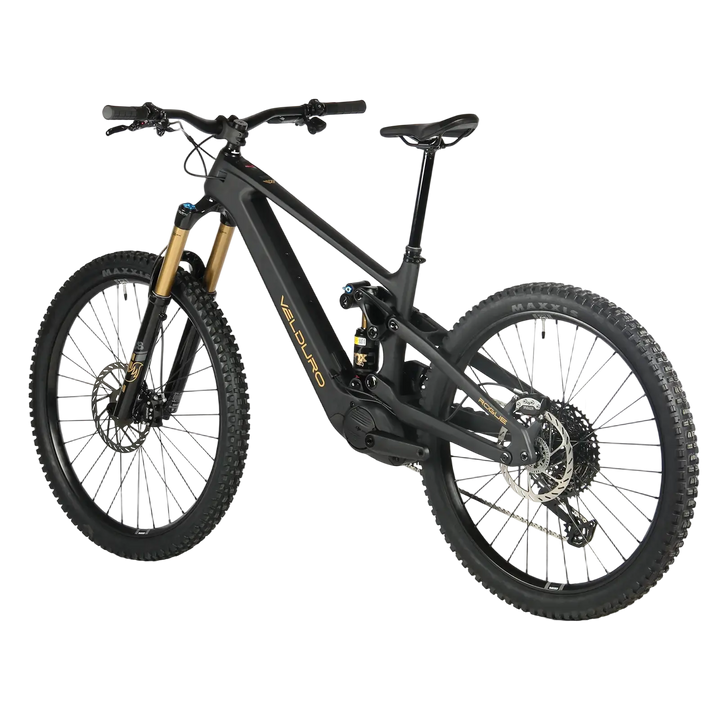

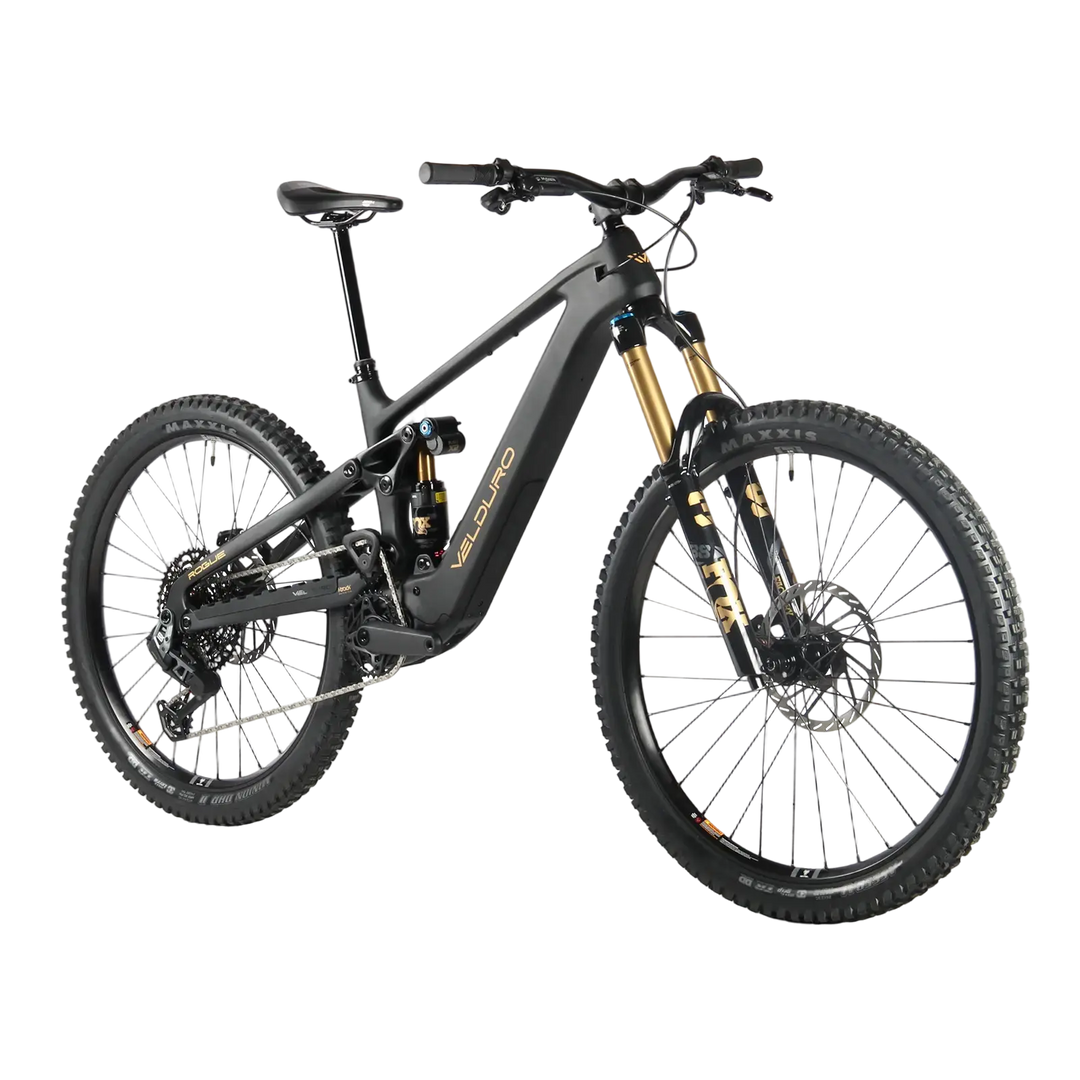

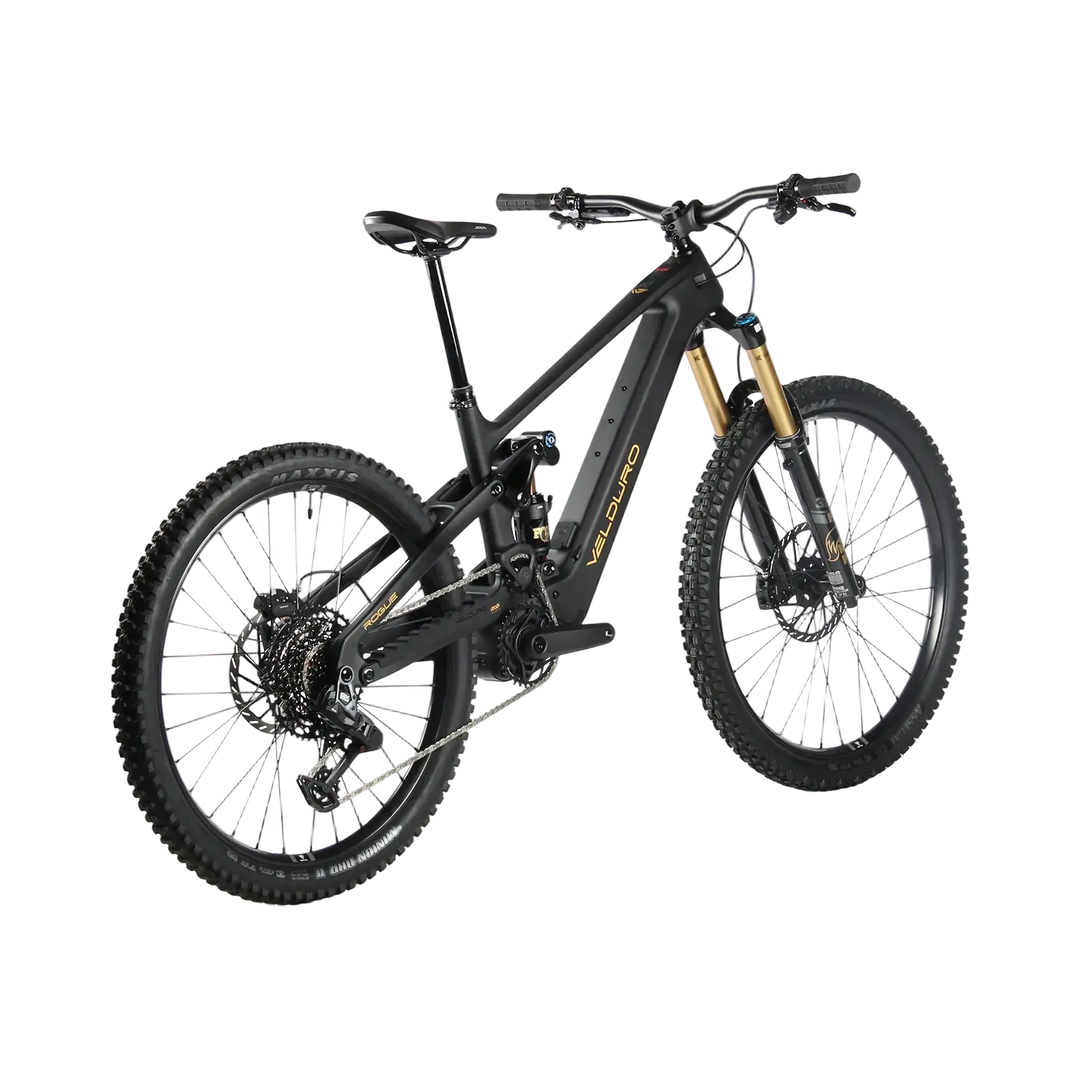

Meet the Rogue R. Engineered for the ultimate MX enduro experience. Featuring custom-tuned FOX suspension, SRAM AXS GX Eagle 10-52T drivetrain, and powerful Maven Silver four-piston brakes, this bike is built to perform. Weighing just 23.6 kg and powered by an 800 Wh battery, the Rogue R delivers all-day capability with i-track enhanced suspension for unmatched control and responsiveness on any terrain. This is the ultimate Avinox M2S powered enduro EMTB!
Specs
Frame, Saddle, Dropper, Cockpit
- Carbon fibre enduro frame,
-165mm rear travel, up to 170mm with 27.5 rear wheel
- mid-pivot
- battery integrated
- rear wheel flip chip
- shock position flip chip
- inner cable routing
- Boost 12x148mm
-16T idler, with oversize bearings.
- Headset: FSA No.57 Alloy MTB ZS44/56
- Saddle: Fizik Terra Aidon X5
- Seat post lever: ONEUP Dropper lever V3.1
- Seat Post Clamp:ONEUP KIT 22.2
- Dropper:ONEUP V3 mechanical Dia.31.6
S: 180mm travel, M/L: 210mm travel,
XL: 240mm travel
- Handlebar: OneUp, alloy, 800L, 35R.
- Stem: ONEUP Stem 42mm forged
- Grips: Velduro: thick grips - Black.
Drivetrain & Brakes
- Brakes:Sram Mavan Silver 4- Pistion hydraulic brake
- Discs: Sram HS2 disc front 220 , rear 200mm
- Pedal: Riders Choice
- Shift lever: Sram AXS pod controller
- Rear Derailleur: Sram AXS GX eagle transmission derailleur w/ power cable
- Crankset: Avinox SL crank 155mm
- Cassette: Sram XS-1275 10-52T
- Chain :Sram GX Flat top Chain
- Chainwheel Sram EMTB Eagle 34T
Wheels
- Wheel set: Velduro e-Enduro carbon, EC-30
- Front Hub: Alloy, 2 sealed cartridge bearings, 15x110 thru-axle, 28h,
straight-pull, 6-bolt
- Rear Hub: Alloy, 4 sealed cartridge bearings, 148x12 thru-axle, 28h,
straight-pull, 6-bolt, 78T
- Spokes: Sapim e-light straight pull
- Rim: Carbon,F 29’/R 27.5’, 30mm internal width
- Front tire: Maxxis Assegai M356Ru 29*2.5 3C Grip/DD/TR BK
- Rear tire: Maxxis Minion DHR2 M327 Ru27.5*2.4 3C Terra/DD/TR BK
- Your Rogue is tubeless ready, but comes with tube.
Avinox
- Motor: AVINOX M2S 250W 130Nm, Boost to 150Nm, 1300W Peak Power
- Battery: AVINOX 36V 800Wh
- Charger: AVINOX 4A 168W
- Display: AVINOX DP100
Suspension
- ox 38 F-S 2026, 29 inch, 170mm,
Grip X2, 15X110mm
- Fox float X2 F-S 2026, 205X65mm (custom factory tuned for the Rogue)
