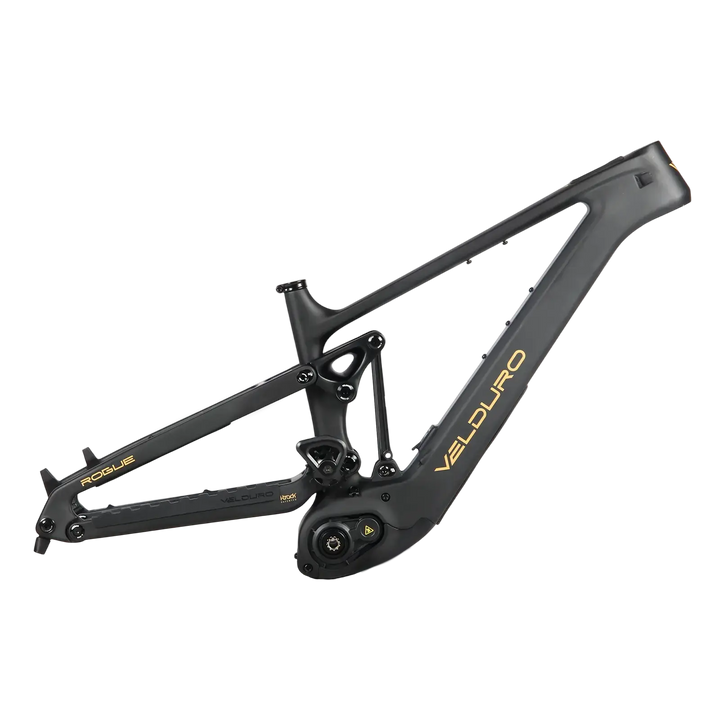

Velduro Rogue Frame - M2S
Regular price$7,200.00
/
- In stock, ready to ship
- Inventory on the way
- 30-Day return period
- Quick Shipping
- Support a rider owned shop
- Recycled packaging
Build your dream EMTB with Velduro. Using flip chips the Rogue's modular frame can adapt to your needs and riding style. Swap the travel, tweak geometry or switch wheel sizes and customise your ride to create your Dream Machine. In Standard Mode (170mm fork / 165mm rear with MX wheels), it's a trail-taming beast. Switch to All-Mountain Mode (160mm front/rear with MX wheels) for flowy precision, or unleash enduro Mode (180mm front / 172mm rear with 29inch rear wheel) to dominate descents.
Includes
- Frame: Carbon fiber, enduro catagery
- Mid-pivot suspension, rear travel 165mm up to 172mm with 29inch rear wheel, rear wheel flip chip, shock clip chip,
- Boost 12x148mm thru axle
- Headset: FSA No.57 Alloy MTB, ZS44/56
- Motor: Avinox M2S 250W 130Nm, Boost to 150Nm, 1300W peak power
- Battery: Avinox 800Wh integrated
- Display: Avniox DP100 integrated 2-inch display
- Button: Avinox BC100 Wireless control left & right
- Charger: Avinox 4A charger
- Cables: Avinox customised Waterproof and foolproof wiring
- Associates: UDH Hanger, Seat post clamp, Cable lugs
- Avinox Cranks - SL 155mm
- Avinox 104 BCD Spider, velduro 34T Chainwheel
Specs
Headset
External wired headset, ZS44/56mm
Suspension
- Fork: 1.5T, 160-180mm travel single crown fork suitable, 170mm as suggest, ATC under 585mm, Double crown fork not suitable
- Shock: Trunnion shock only, eye to eye 205mm, bottom bushing as M8*30mm, 65mm travel as recommended for 165/172mm rear travel, 62.5mm travel for 160/165mm rear travel.
Seatpost
- Dia 31.6mm, insert depth S: 260mm, M:280mm,L:300mm ,XL: 325mm
- Recommended dropper travel: S:180mm, M&L: 210mm, XL: 240mm
- Dropper cable length: 1200mm
- Seat Clamp Dia 35mm
Brakes
- Frame rear brake post mount 203mm directly
- Front brake mount depends on your fork
- Front brake cable 950mm
- Rear brake cable 1700mm
Drive System
- Chainwheel: 104BCD, Max to 34T
- Crank: Length up to 165mm, min offset:25mm
- Full mount derailleur suitable
1x shifting only - Shimano and SRAM compatible
- E-shift and manual shift compatible
- Manual shift cable length 2000mm
Wheelset compatibility
- Front hub: depends on the fork, normally 15x110mm
- Rear hub: 12x148 Boost
- Front rim: 29inch (700C)
- Rear rim:29inch(700C) and 27.5inch(650B) compatible
- Front tire: 29x2.5 recommended, max to 2.6
- Rear tire: 29x2.4/27.5x2.4 recommended
