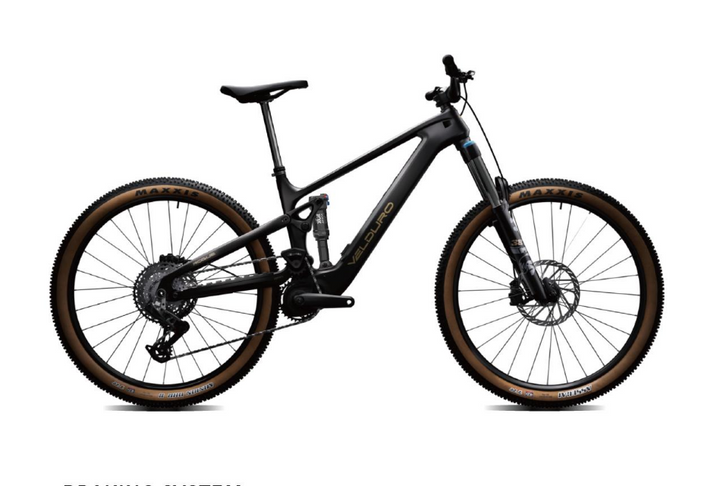

The Rogue X is an affordable e-enduro with no compromises. It shares the same electrical components and frame as the Rogue R, paired with the same race-grade FOX 38 and Float suspension and high-strength SRAM Eagle 70 transmission drivetrain. Magura MT5 brakes deliver superior braking power, making it an excellent choice for both climbing and downhill.
ROGUE X: Full Component Breakdown
Base Info
-
Weight: 23KG
-
EN NORM: EN15194
-
Load Capacity: 120KG
- Carbon fibre enduro frame,
-165mm rear travel, up to 170mm with 27.5 rear wheel
- mid-pivot i-track suspension
- battery integrated
- rear wheel flip chip
- shock position flip chip
- inner cable routing
- Boost 12x148mm
-16T idler, with oversize bearings.
- Headset: FSA No.57 Alloy MTB, ZS44/56mm
- Saddle: Fizik Terra Aidon X5.
- Dropper: Velduro Enduro mechanical, Dia.31.6, Travel: S&M:170mm, L&XL: 200mml.
- Handlebar: Velduro Enduro, Alloy, 35D 800L. rise 20.
- Stem: Velduro Enduro, Alloy, 35D, 40mm long.
- Grips: Velduro MTB grips, 22.4mm, one side ring, closed end.
Motor System
- Motor: AVINOX M2S 250W 130Nm, Boost to 150Nm, 1300W Peak Power
- Battery: AVINOX 36V 800Wh
- Charger: AVINOX 4A 168W
- Display: AVINOX DP100
Drivetrain & Brakes
- Brakes: Magura MT5 HC,hydraulic brake, 4-Piston, heavy duty
- Disc: Magura MDR-C heavy duty disc, front 220mm, rear 203mm
- Pedal: Riders Choice
- SHIFT LEVER:Sram eagle 70 shifter
- REAR DERAILLEUR: Sram eagle 70 transmission mechanical
- CRANKSET: Avinox SL crank 155mm
- CASSETTE: Sram XS-1270 10-52T Eagle Transmission
- CHAIN :Sram Eagle 70 Flat top Chain
- CHAINWHEEL: Sram 34T eagle Transmission E-MTB Chainring 104 BCD
Wheels & Cockpit
- Wheel set: Velduro e-Enduro Alloy, EA-30
- Front Hub: Alloy, 2 sealed cartridge bearings, 15x110thru-axle, 32h, straight-pull, 6-bolt
- Rear Hub: Alloy, 4 sealed cartridge bearings, 148x12thru-axle, 32h, straight-pull, 6-bolt, 21T
- Spokes: Sapim e-light J-bend
- Rim: Alloy,F 29’/R 27.5’, 30mm internal width
- Front tire: Maxxis Assegai M356Ru 29*2.5 3C Grip/DD/TR BK
- Rear tire: Maxxis Minion DHR2 M327 Ru27.5*2.4 3C Terra/DD/TR BK
- Your Rogue is tubeless ready, but comes with tube.
Suspension
- Fox 38 P-S 2026, 29 inch, 170mm,Grip, 15X110mm
- Fox float P-S 2026, 205X65mm (custom factory tuned for the Rogue)
