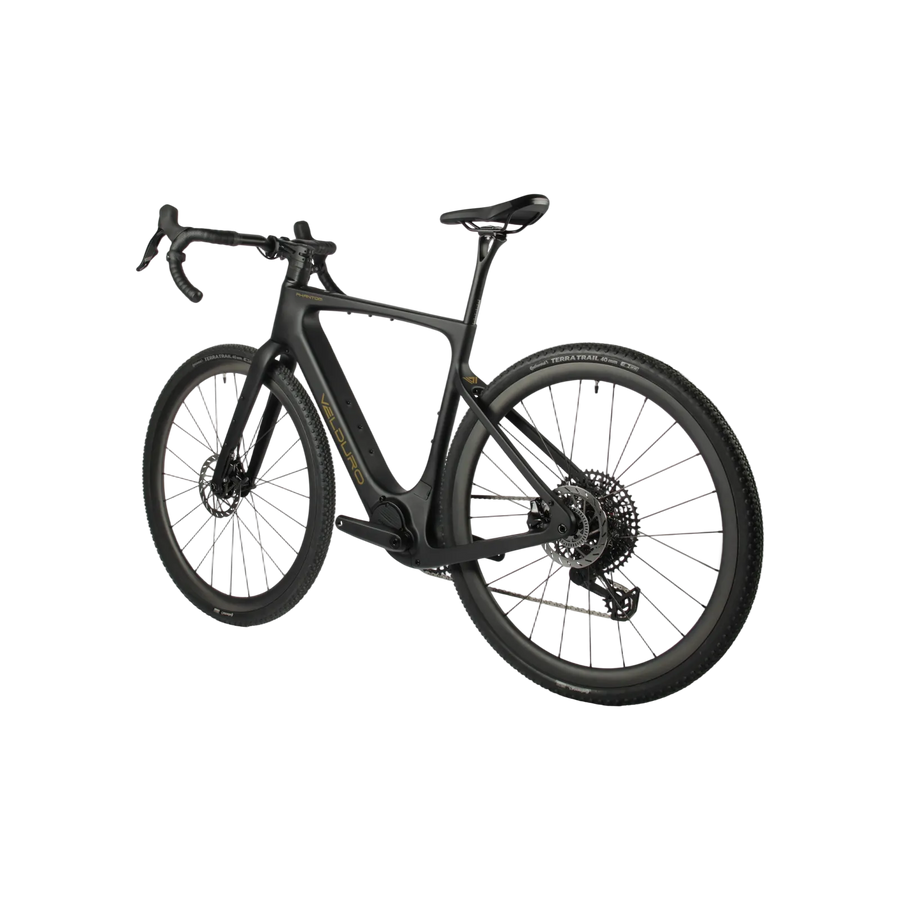

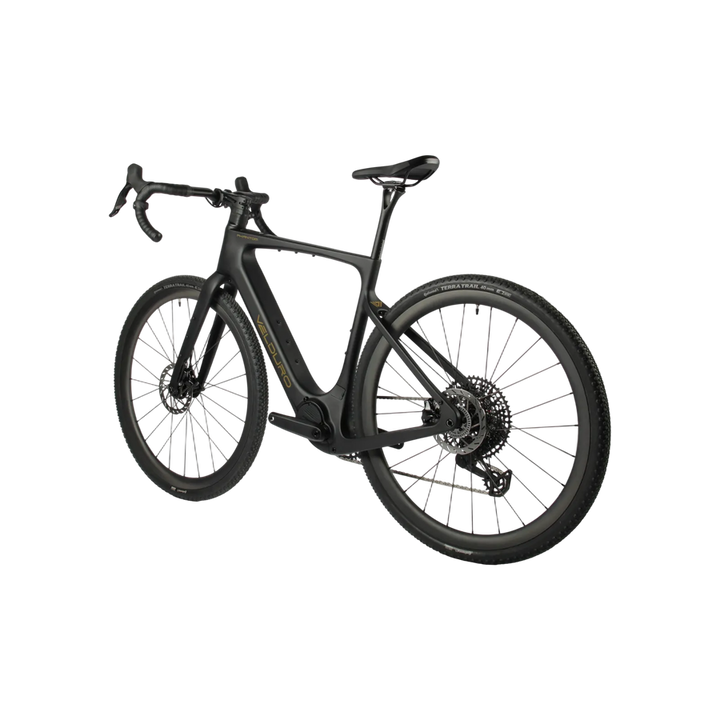

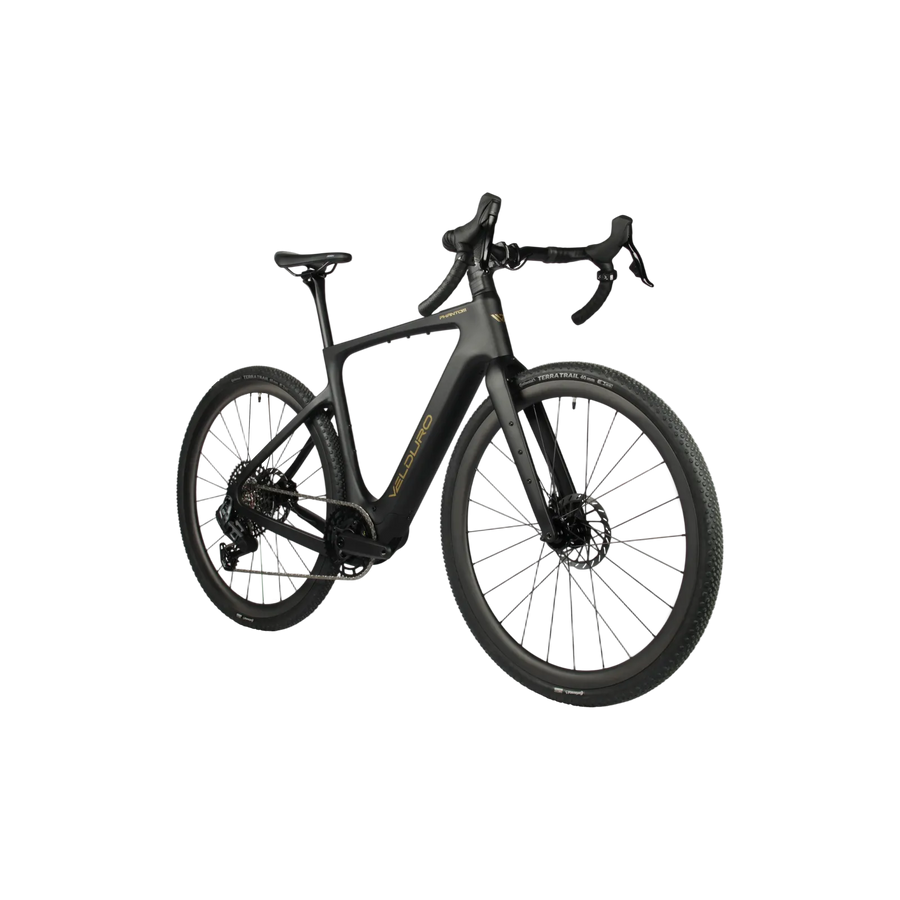

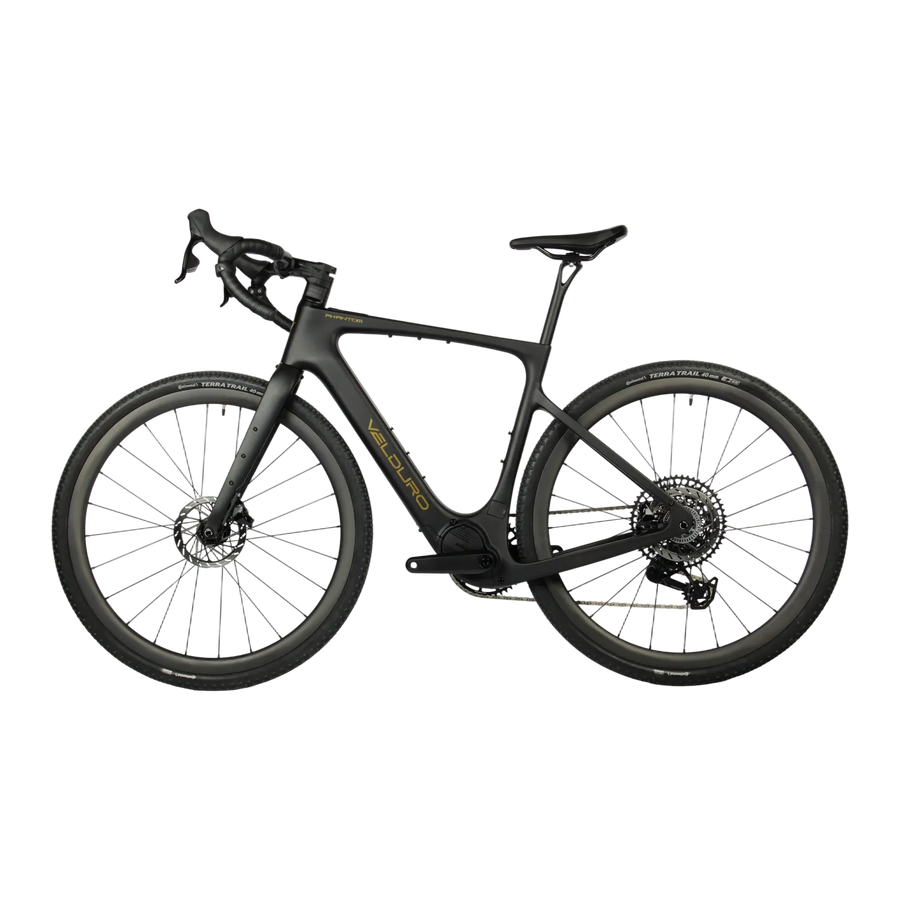

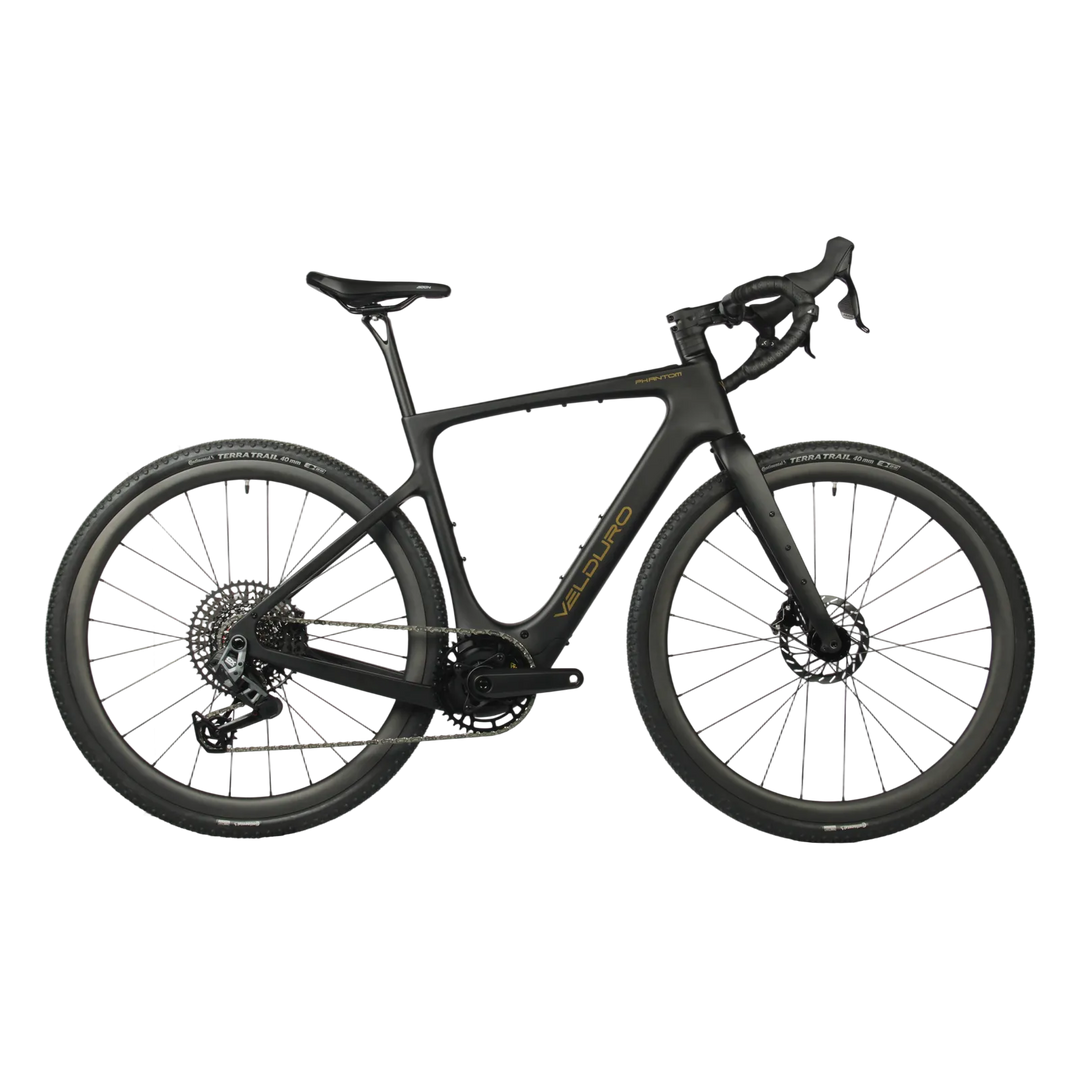

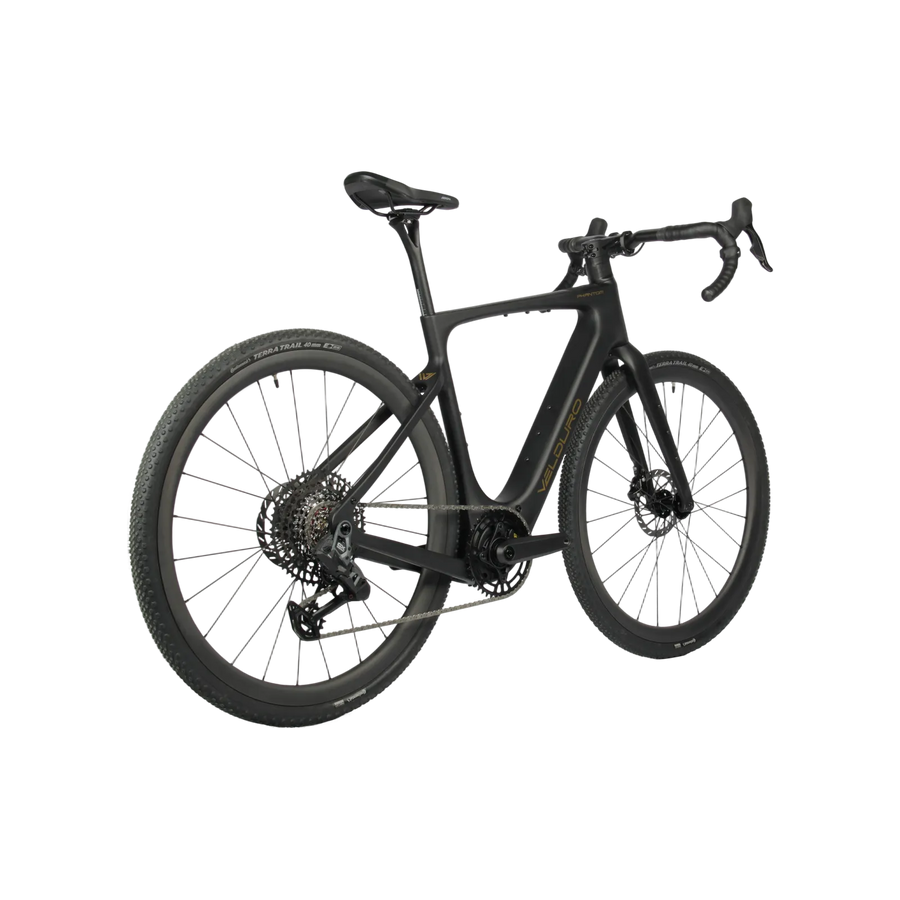

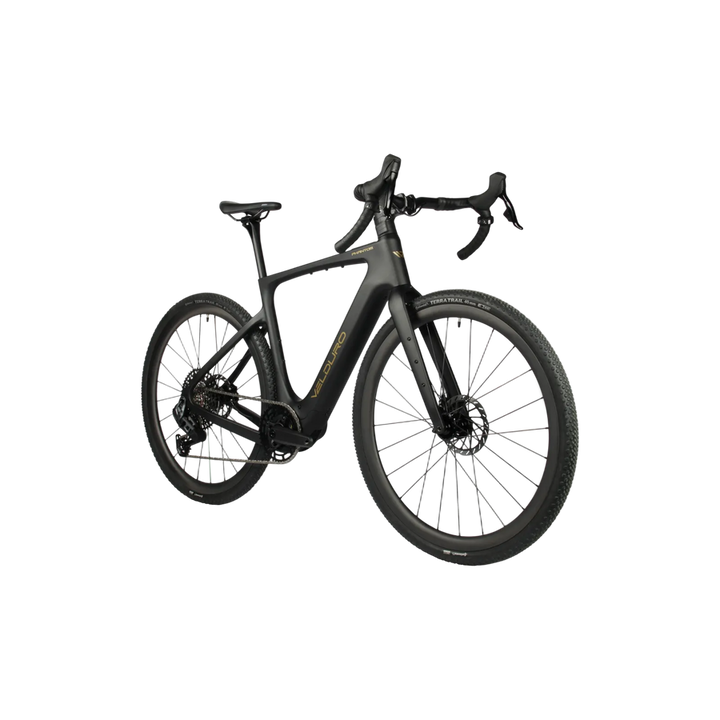

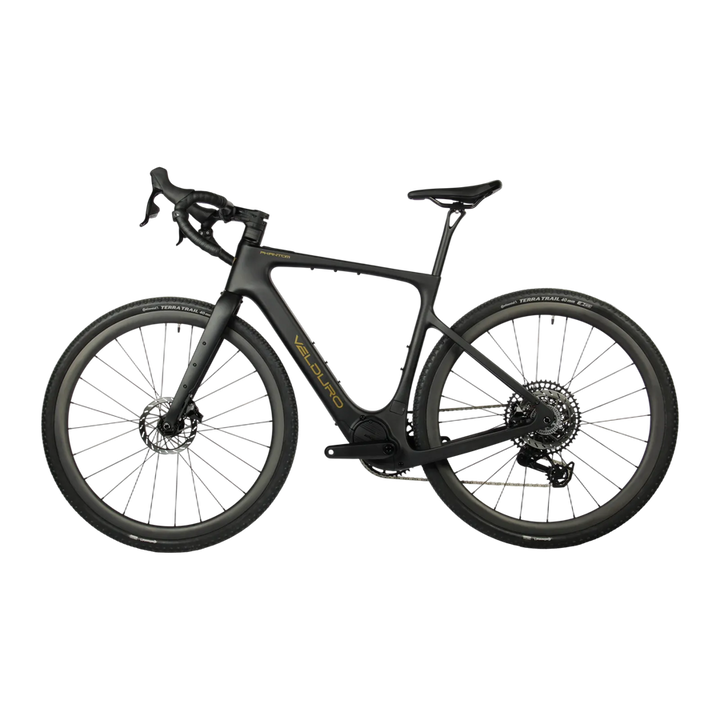

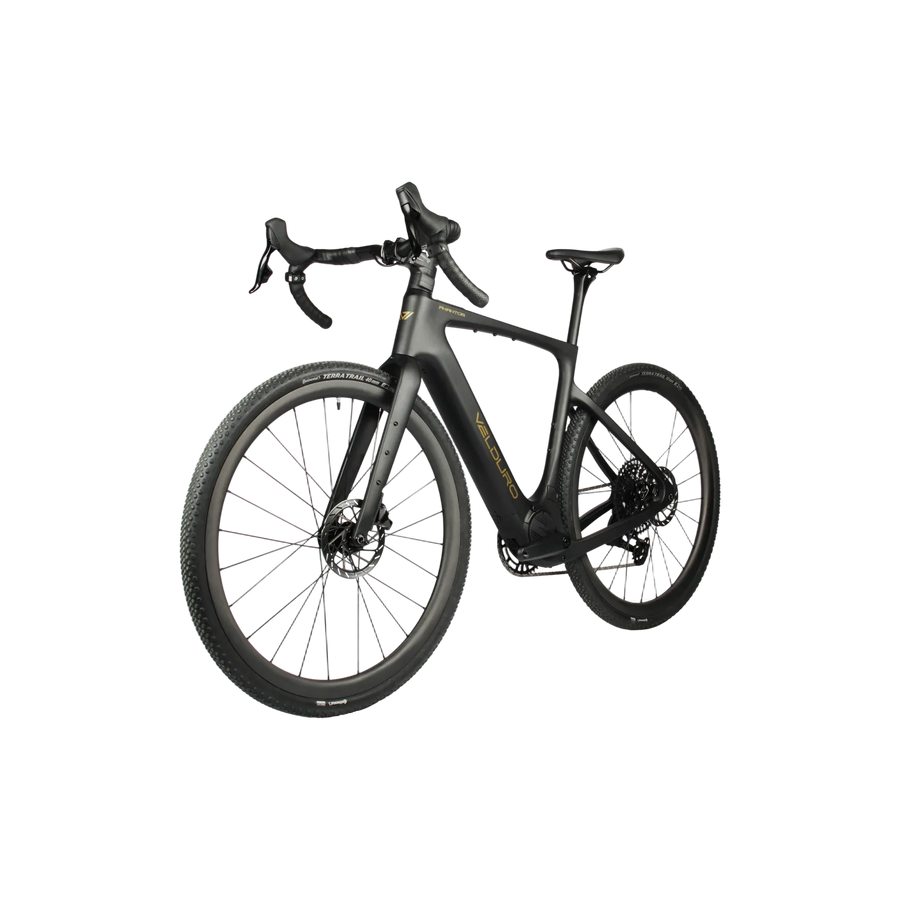

Velduro Phantom X - M2

Award-Winning e-gravel machine has not compromised on weight, strength, quality, or tyre size. We have collaborated with gravel riders to create the ultimate ride, allowing them the freedom to explore and conquer any terrain put in front of them. The combination of our light-weight carbon frame, gear set and powered by the Avinox M2 drive system makes the Phantom the fastest and most versatile e-gravel bike on the market.

Specs

Frame, Saddle, Dropper, Cockpit

• Frame: Carbon fibre, gravel category, battery integrated, inner cable routing, 12X142mm, 8
  mounting points, rack compatible
• Fork: Carbon gravel fork, 6 mounting points, 12X100mm, offset 50mm
• Headset: FSA NO.55R 1.5" / 558 ACR, Alloy gravel, dia top& bottom 52mm
• Stem: FSA SMR Alloy -6° alloy Length S:70mm M:80mm, L:90mm, XL:100mm
• Saddle: Fizik Terra Aidon X5
• Seatpost: Velduro carbon Dia27.2 380mm
• Handlebar: Velduro Carbon, Dia31.8, Flare 15°, Width: S/M 420mm, L/XL: 440mm
• Straps: Velduro black gravel strap


Drivetrain & Brakes

• Brakes: Sram Rival AXS HRD Shift-Brake System
• Discs: Sram HS2 extreme duty disc, front 160mm, rear 160mm
• Rear derailleur: Sram Rival XPLR AXS Rear Derailleur with power cable
• Cassette: Sram Rival XPLR XG-1351 13-speed Cassette
• Cranks: Avinox SL 165mm
• Chain: Sram Rival Transmission Flattop Chain
• Spider: Avinox 104BCD spider
• Chainwheel: Velduro customized alloy 44T, 3mm inward
• For NZ only:
  Chainwheel: Lekkie one-piece CNC 44T, 3mm inward, without spider


Wheels

• • Front hub: Velduro 2-bearings, BLK, 6-bolts, 13G*24H, 12x100mm
  • Rear hub: Velduro 4-bearings, BLK, 6-bolts, 13G*24H, 12x142mm, XDR freehub
  • Rims: 700C, Velduro Carbon, UD black, 13G*24H, 24mm inner width, 35mm depth, with hook
  • Tires: Maxxis Rambler 700*45C BLK, with tube

  *Your Phantom is tubeless-ready, but comes with tubes.
