With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.
Modern, efficient energy source

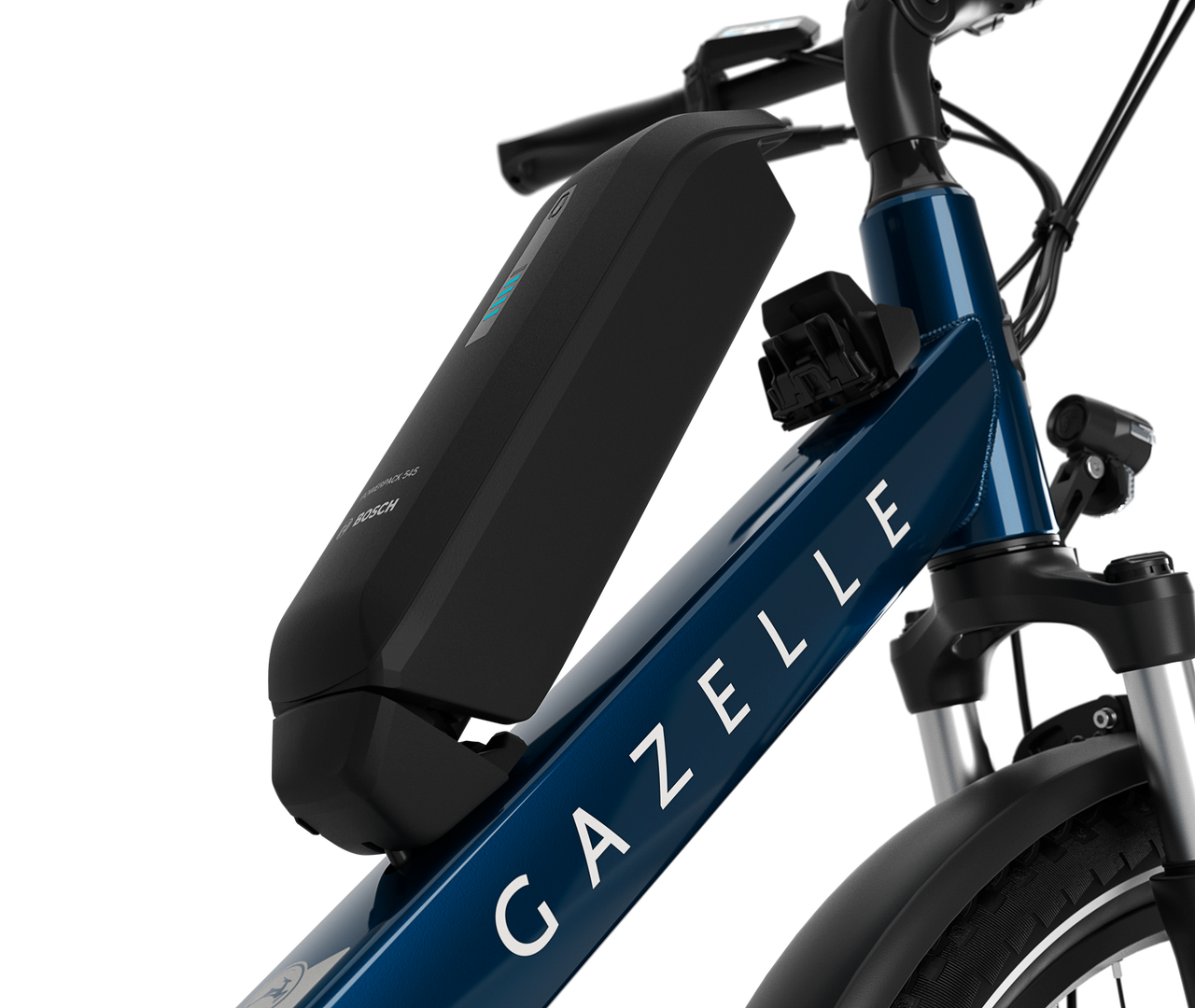

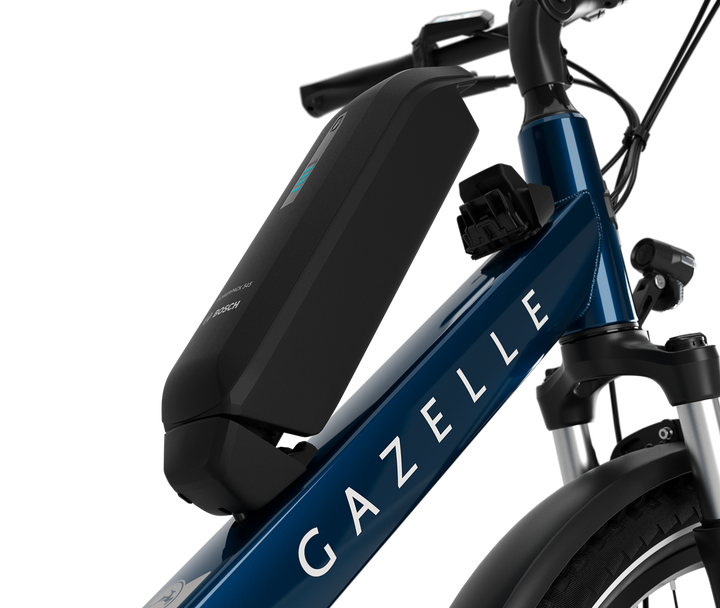

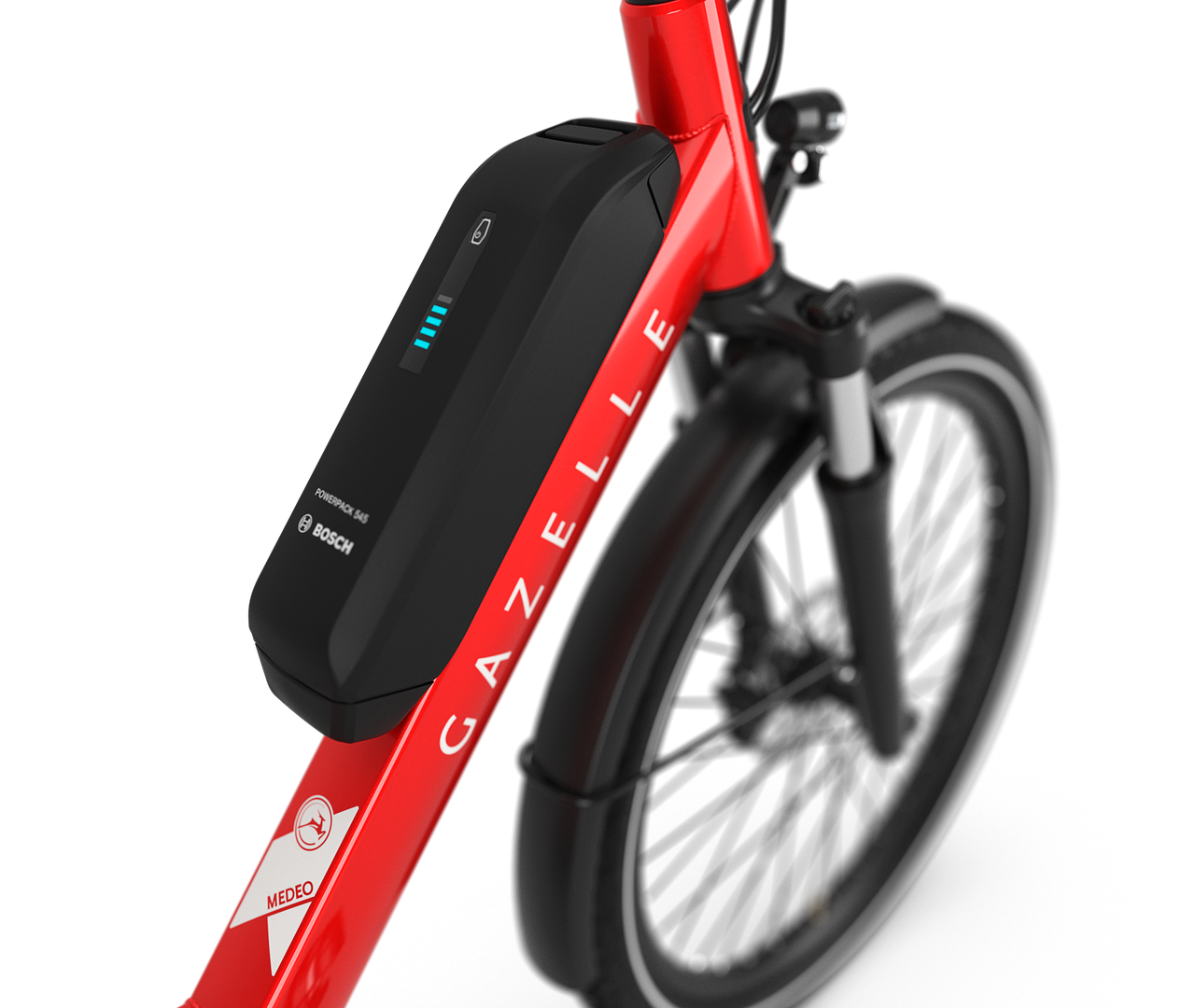

Bosch lithium-ion batteries are among the most advanced on the market. The intelligent battery management system protects them against overheating, overloading and complete discharge, guaranteeing a long battery life. The high energy density and efficient operation ensure optimum range. With the 545 Wh battery, you'll always have enough range. The battery is secured with a lock on your frame and is easily removed using your bike key. This is convenient, as you can charge the battery either on or off the bike.

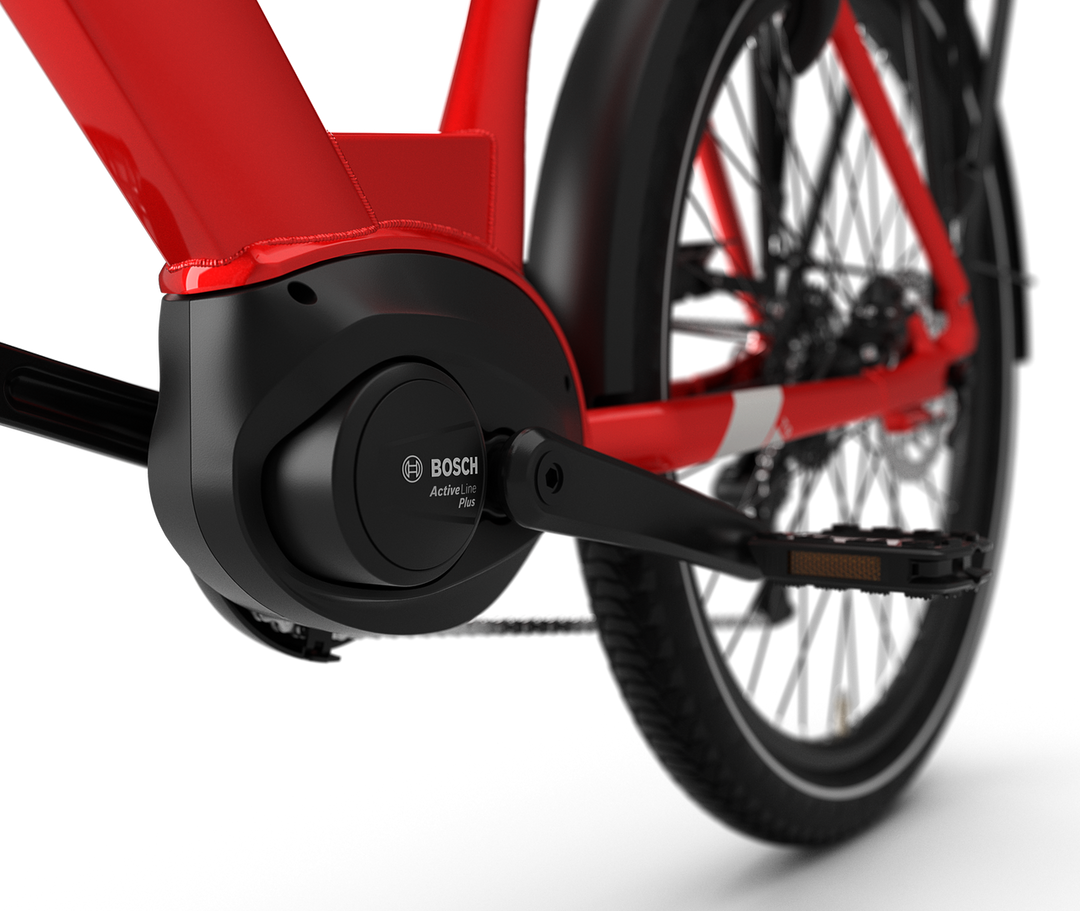

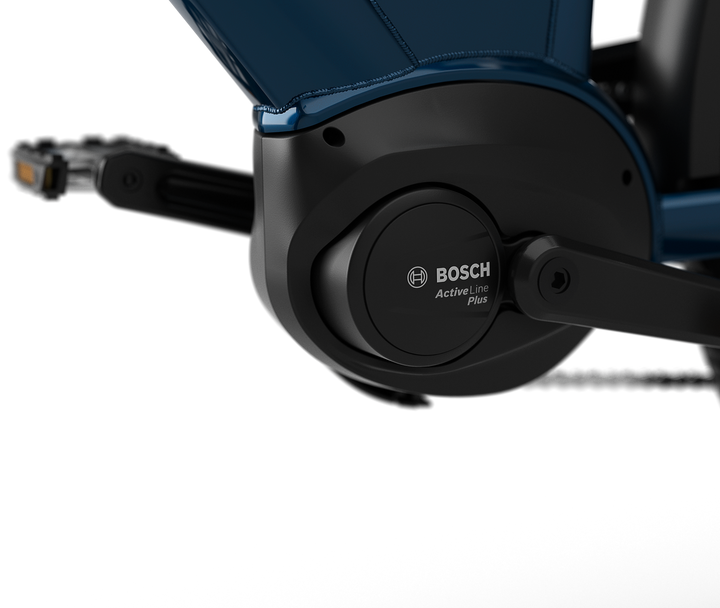

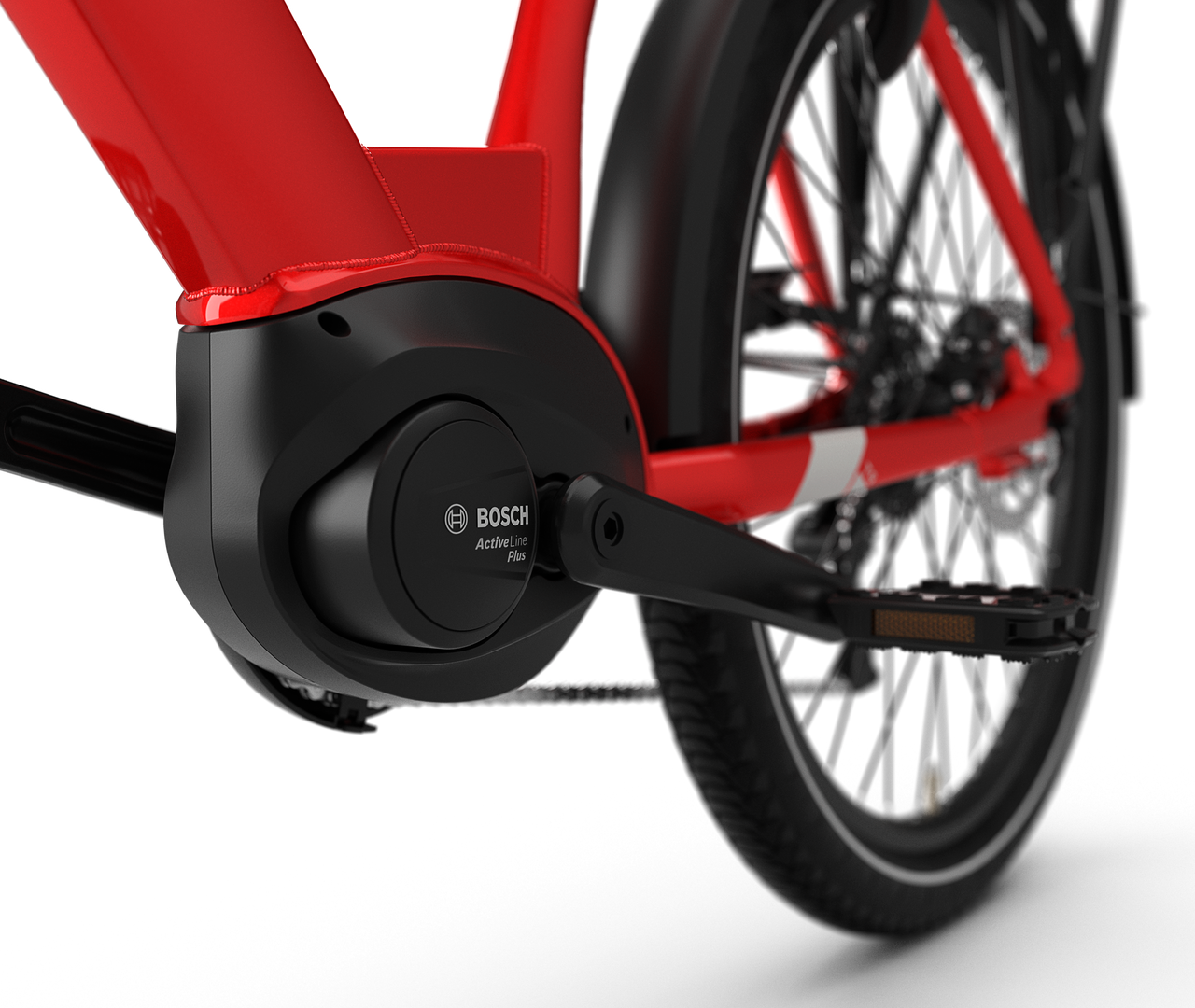

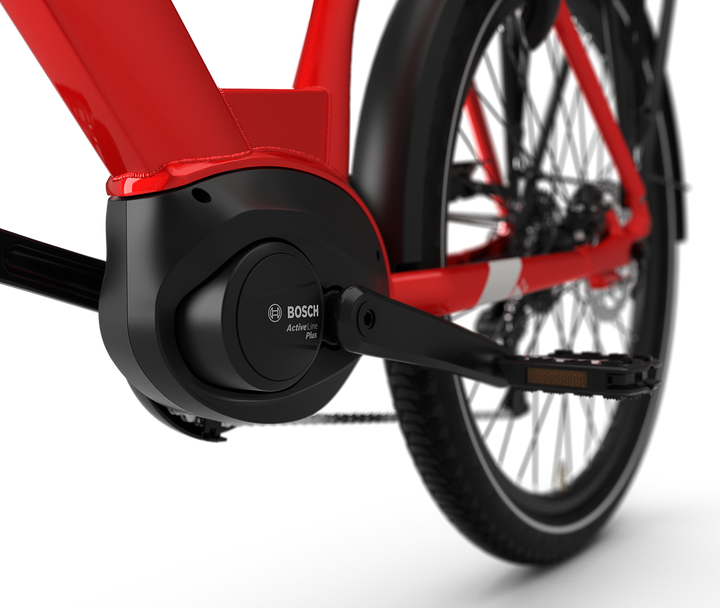

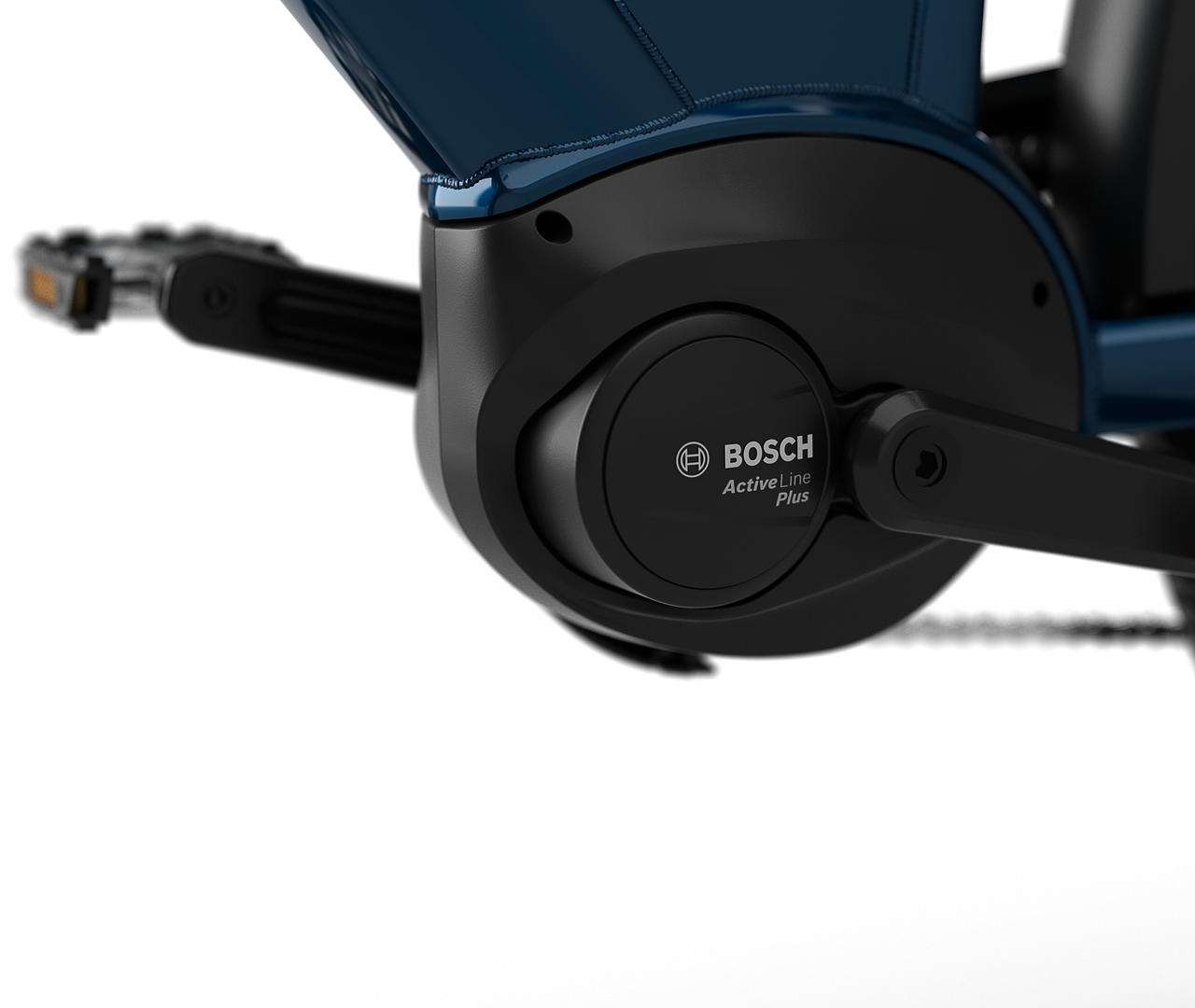

The wind is always at your back with a Bosch Active Line Plus motor

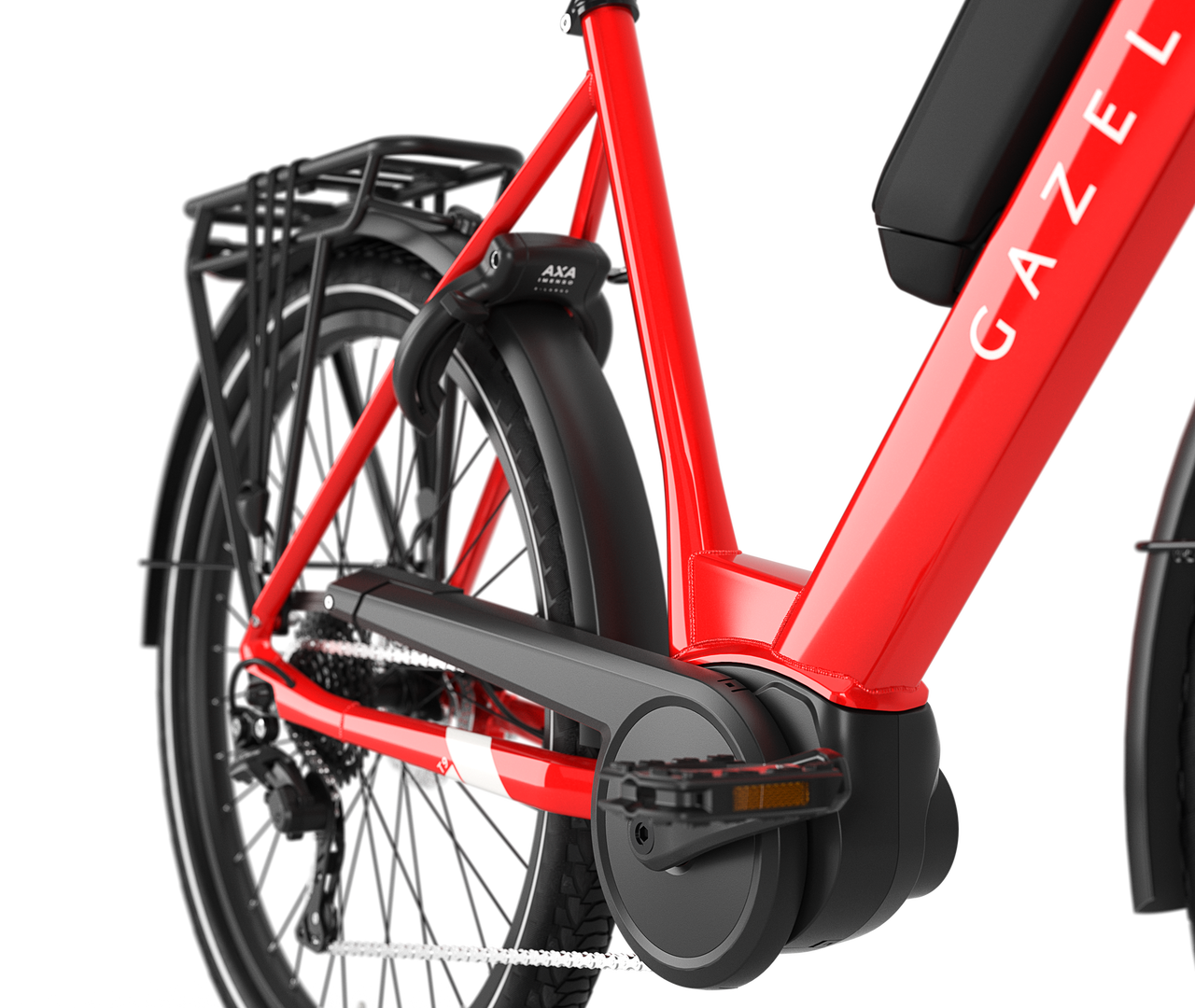

The Bosch Active Line Plus mid-motor provides silent, natural support. With 50 Nm torque you can take on any terrain. Whether it's flat or hilly, with this motor you will reach your destination in comfort.
Battery and range
40 mi
Specifications
|
Color Options
|
Ink Blue Gloss

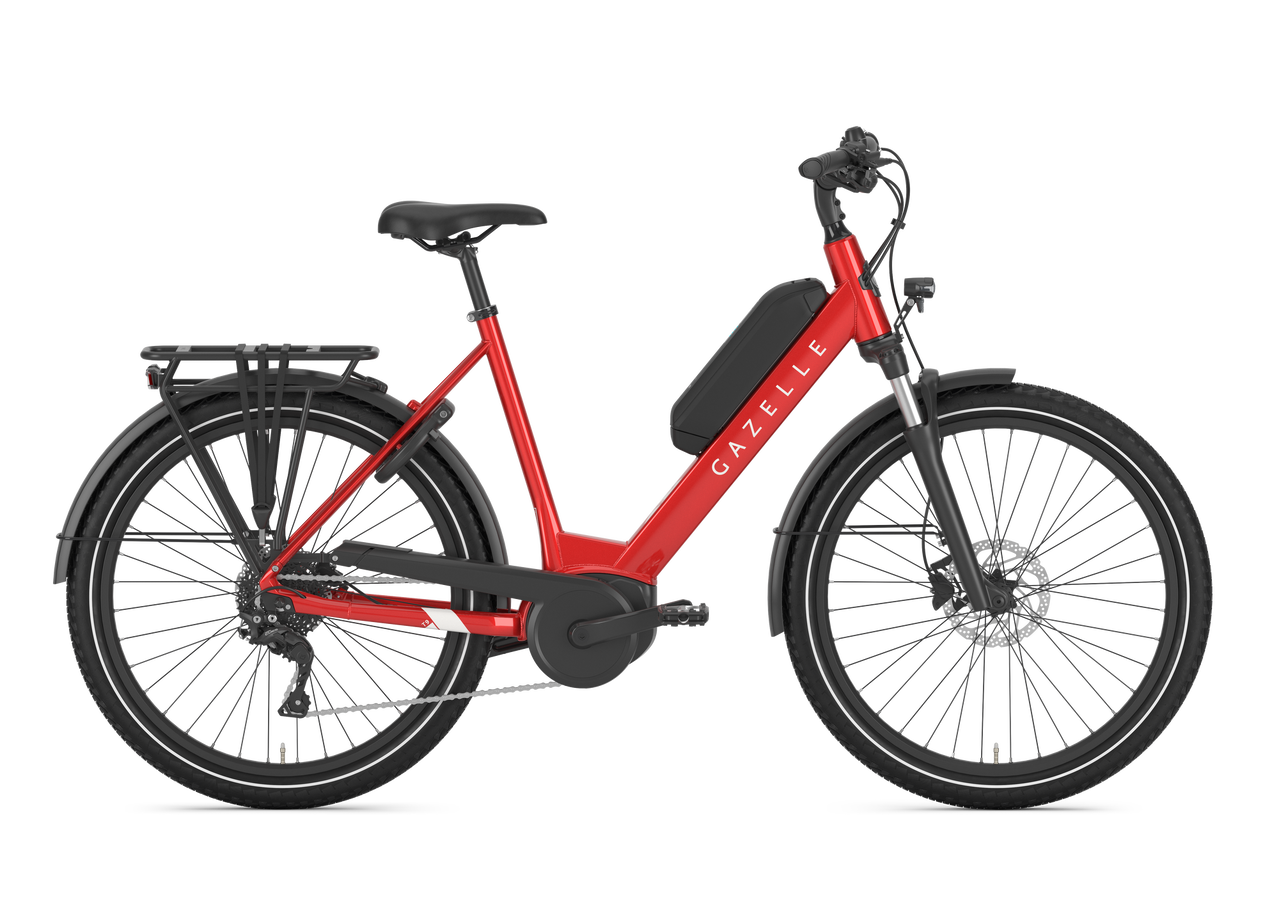

Champion Red Gloss
Thunder Grey Gloss
|
|
Fork Suspension
|
Telescope
Spiral Spring
|
|
|
System Model
|
Active Line Plus
|
|
Motor
|
Bosch Smart System Active Line Plus
|
|
|
Engine Position
|
Mid
|
|
Maximum Speed
|
25 kph
20 mph
|
|
|
Maximum Torque of Engine
|
50 N-m
|
|
Maximum Total Weight
|
130 kg
|
|
|
Cycling Position
|
Sportive
|
|
Frame
|
Stable lightweight aluminium sloping frame with 70,5° headset angle and 73° saddle tube angle for a sporty posture and precise handling. Cables beautifully integrated into the frame.
|
|
|
Frame Material
|
Aluminum
|
|
Cockpit Cable
|
Integrated
|
|
|
Frame Shape
|
High-Step, Low-Step
|
|
Frame Size
|
40, 45, 50, 55
|
|
|
Fork
|
SR Suntour MOBIE A32 DS
|
|
Fork Lockout
|
Yes
|
|
|
Front and Rear Rim
|
Ryde Big Bull, Double-walled aluminium for extra strong and efficient cycling performance
|
|
Front Hub
|
Shimano
|
|
|
Wheel Size
|
27.5”
|
|
Wheels Tire Front Etrto
|
62-584
|
|
|
Front and Rear Tire
|
Continental Contact Plus
|
|
Brand Shifters
|
Shimano
|
|
|
Number of Gears
|
9
|
|
Cassette Range
|
11-36
|
|
|
Gear Type
|
Derailleur
|
|
Rear Derailleur
|
Shimano Alivio M3100
|
|
|
Drivetrain
|
Chain
|
|
Front Brake Type
|
Hydraulic Disc Brake
|
|
|
Brake System Code
|
S9
|
|
Front Brake Brand
|
Shimano
|
|
|
Primary Rear Brake Model
|
BR-MT200
|
|
Front Brake
|
Shimano BR-MT200, 180mm
|
|
|
Rear Brake
|
Shimano BR-MT200, 160mm
|
|
Rear Brake Lever
|
BLMT200
|
|
|
Handlebar
|
Herrmans DD36, Plastic wear-resistant handlebar grips for a firm grasp
|
|
Stem
|
Adjustable
|
|
|
Cockpit Handlebar Grip Brand
|
Herrmans
|
|
Saddle
|
DDK
|
|
|
Front Light
|
AXA Compactline 35
|
|
Front Light Lux
|
35
|
|
|
Rear Light
|
AXA Blueline
|
|
Front and Rear Light Energy Source
|
Battery
|
|
|
Display
|
Bosch Purion 200
|
|
Ebike Walk Assist
|
Yes
|
|
|
Type of Display
|
LCD
|
|
Kickstand
|
Ursus Mooi
|
|
|
Luggage Rack
|
Aluminum MIK System Carrier
|
|
Maximum Load of Rear Carrier
|
25 kg
|
