Low & Stable

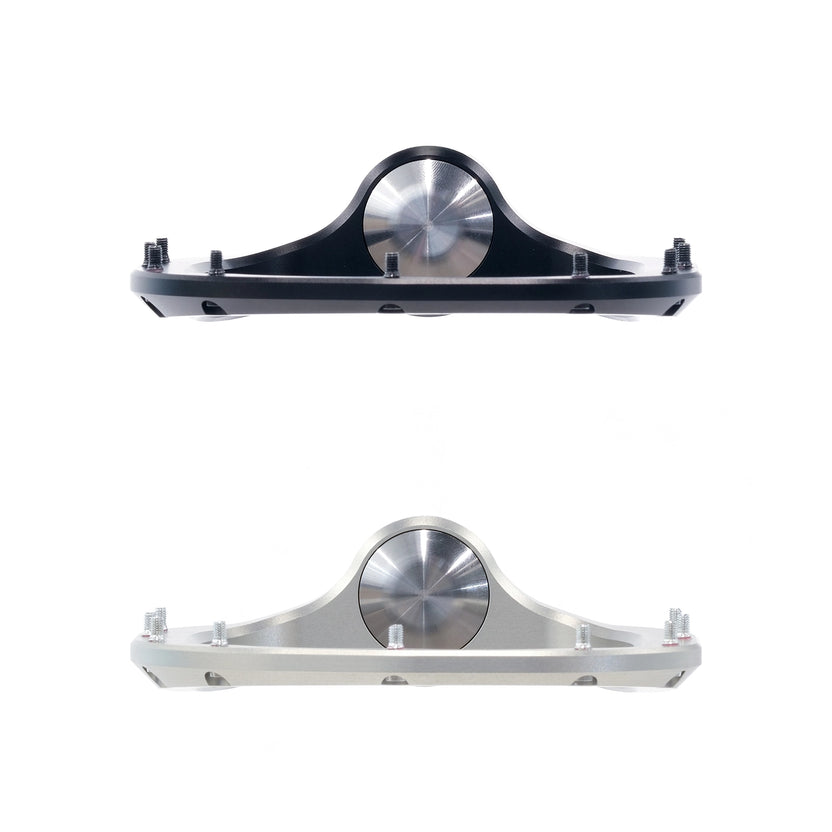

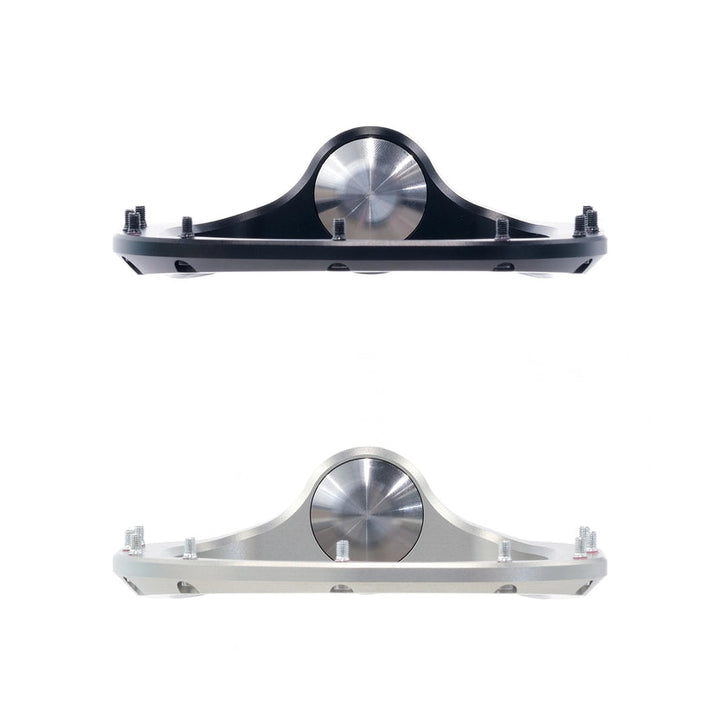

The base of the platform sits 7mm below the centre of the axle. Most pedals place the platform ~6mm above the centre of the axle. This effectively lowers the rider's centre of mass ~13mm offering significant stability, and control. During sudden decelerations, the pedal acts as a pendulum and swings forward cradling the rider's foot in a heels-down position. In the event that you take your foot off a pedal, our pedals are self-righting

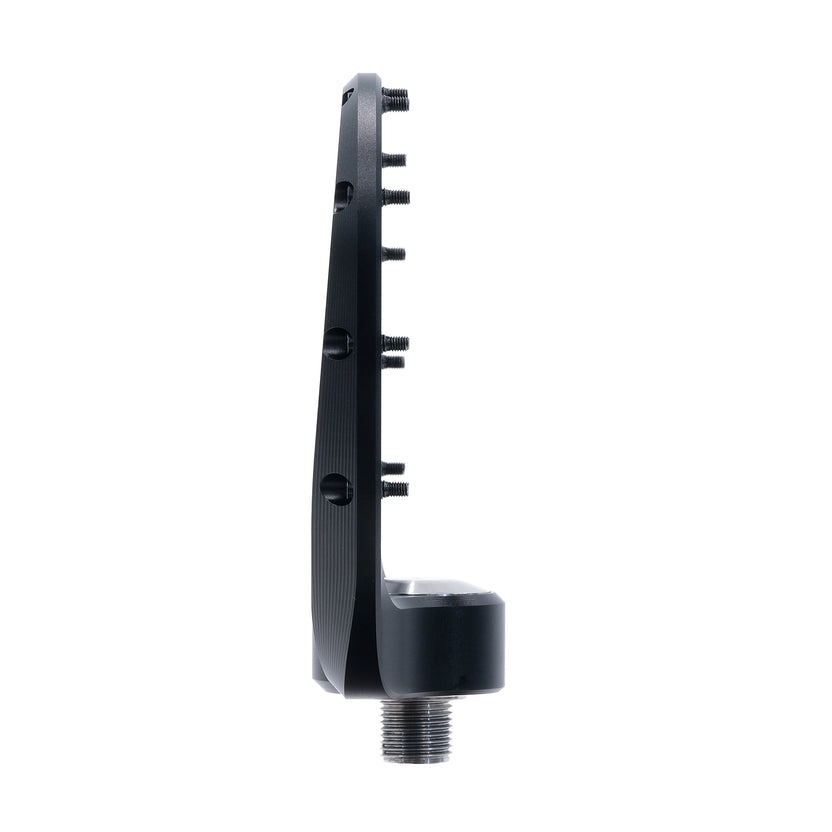

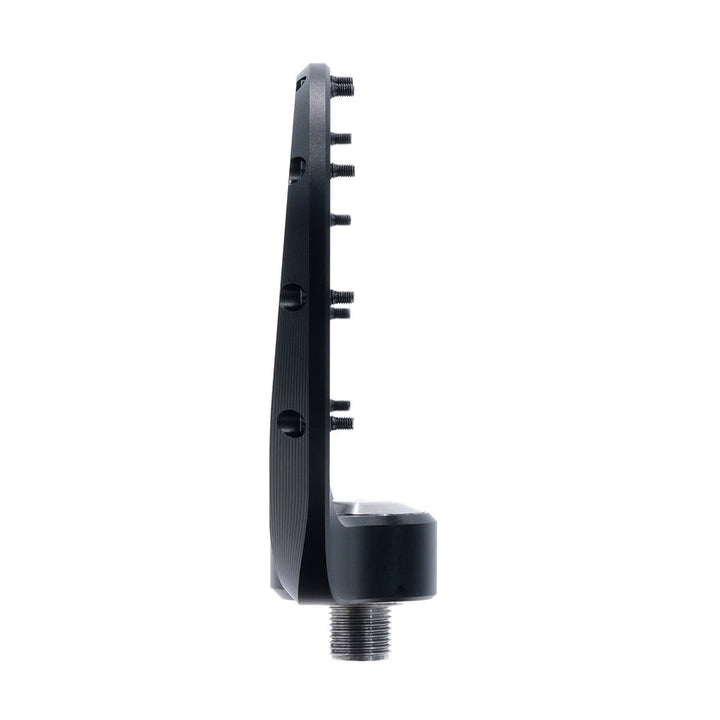

Thin & Smooth

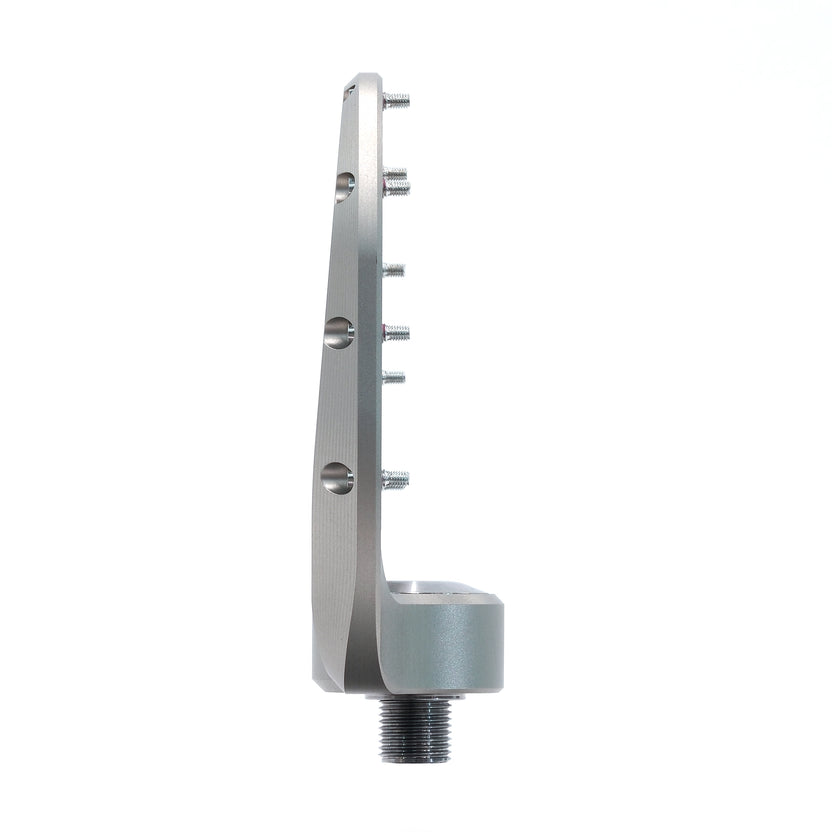

Without the requirement of traction on both sides, we were able to make them a mere 7.5mm thin at the outer edge and optimize the shape to glance off of roots and rocks
Concave & Grippy
Without an axle underfoot, the shoe is free to flex a small amount, offering an exceptional amount of grip on the pins and a locked-in pedal feel
Strong & Serviceable
Our pedal bodies are made out of 7075 aluminum. Each pedal houses 2 robust 7902 bearings. Total pedal weight is 227g
- Outlier recommends these pedals for shoes size 7 US men's, 8.5 US women’s, 40 EU, 7 UK and larger
- Please torque our pedals to 30-35NM. Do not overtorque
- Certain cranks and crank boot combinations may require a pedal washer
- Some customers may find themselves lowering their dropper posts ~12mm to accommodate the lower ride height
- Some riders enjoy these pedals with shorter crank arms
- Outlier offers a 2-year warranty on bodies, axles and spacers
- Installation and Maintenance Guide
Specs
-
Platform Size: 120mm long and 115mm wide (100mm end of axle to outside edge)
-
Thickness: 7.5-14mm
-
Pedal Drop: -7mm from centre of the axle
-
Material: 7075 Aluminum
-
Pins: 9 per pedal, M4, protrude 5.0mm, 4 extra pins provided
-
Bearings: 7902
-
Colours: Black // Raw (Clear Anodized)
-
Weight: 454g per pair
