Deviate

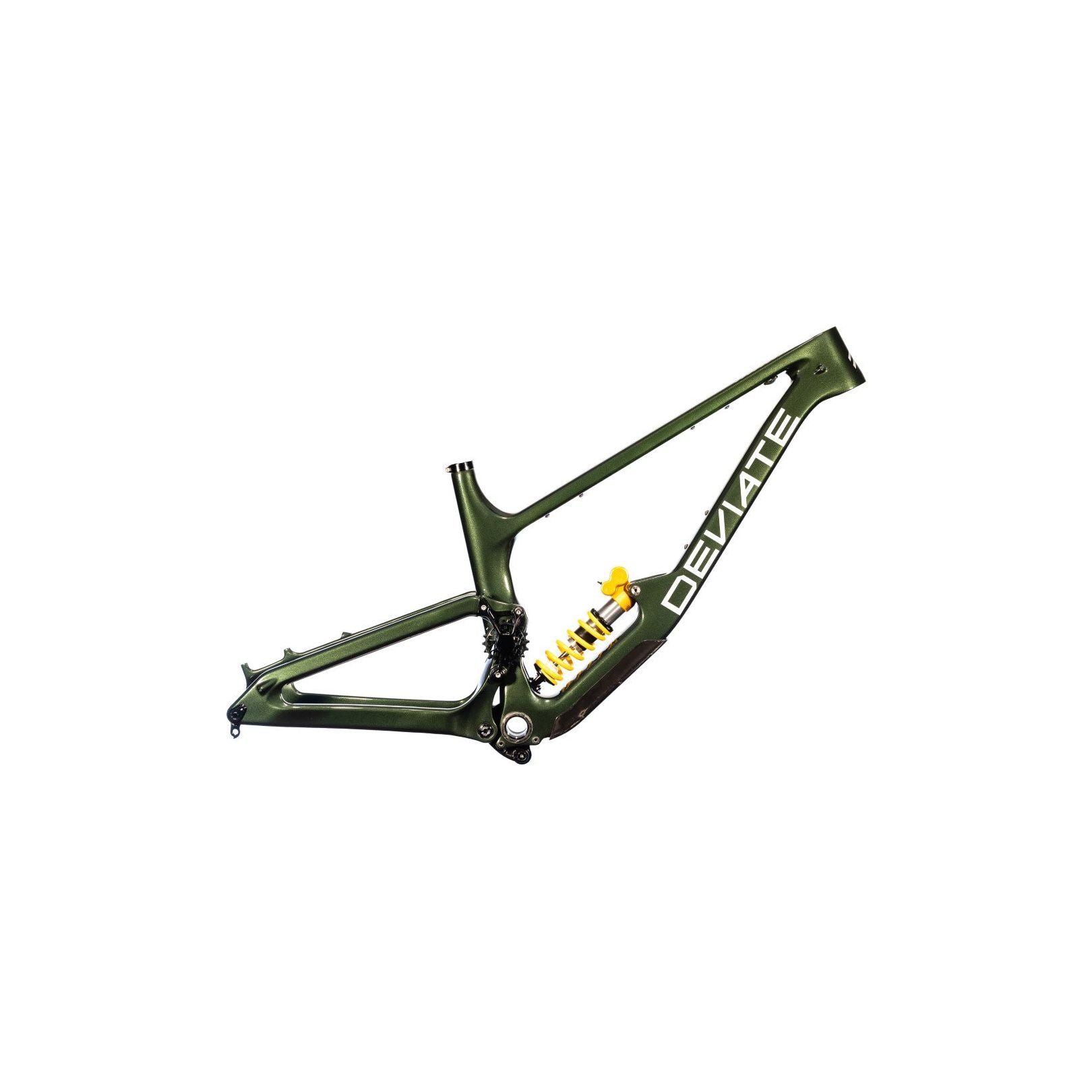

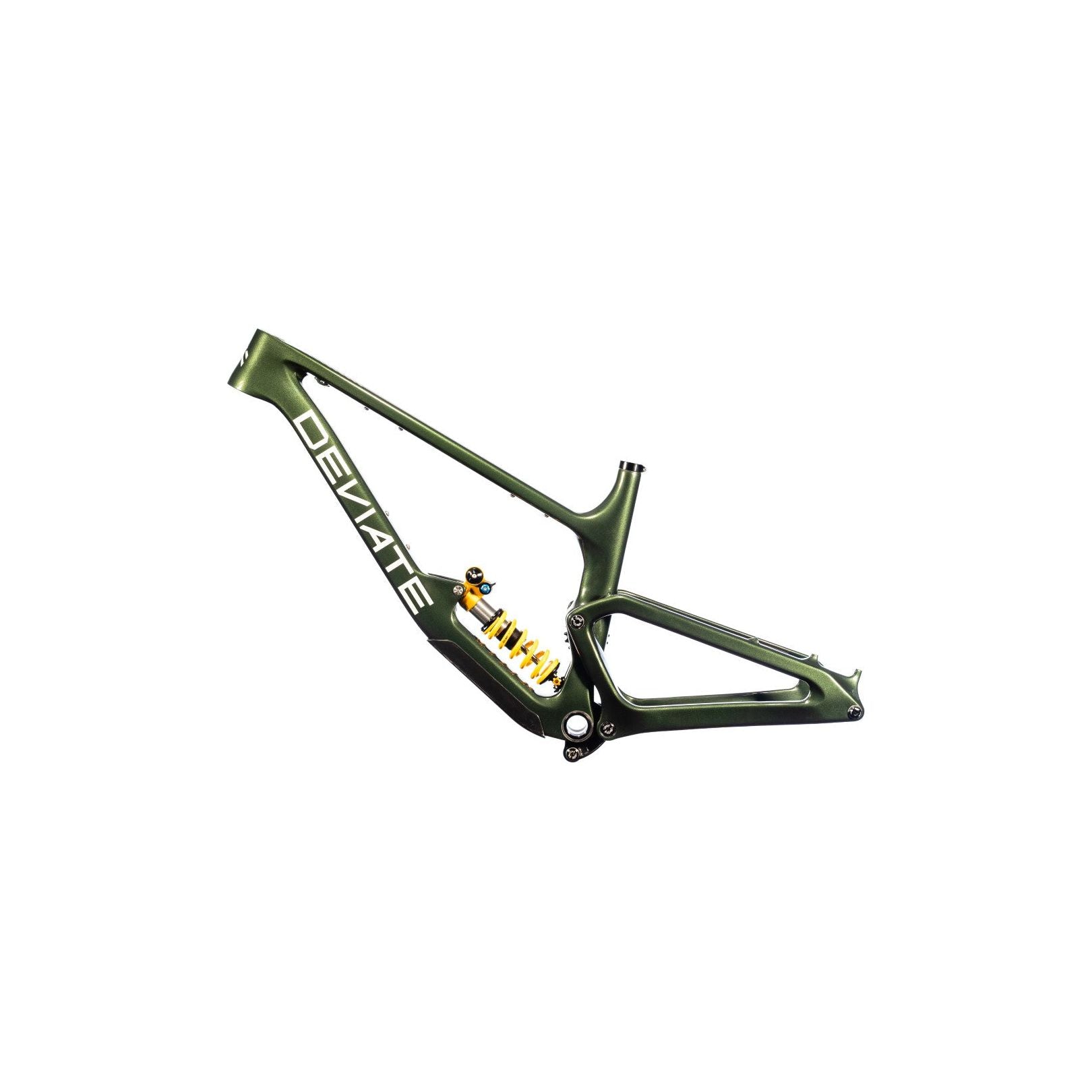

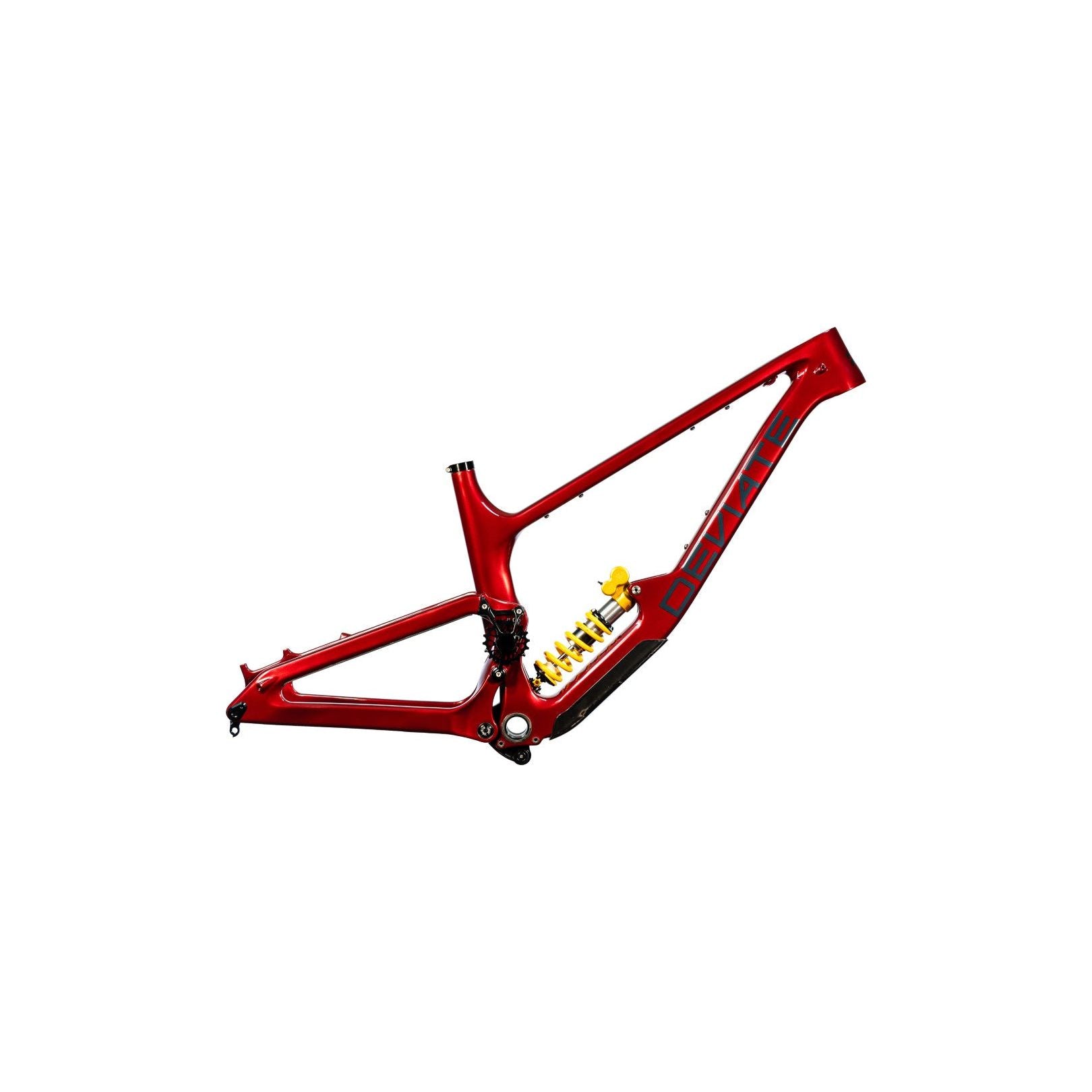

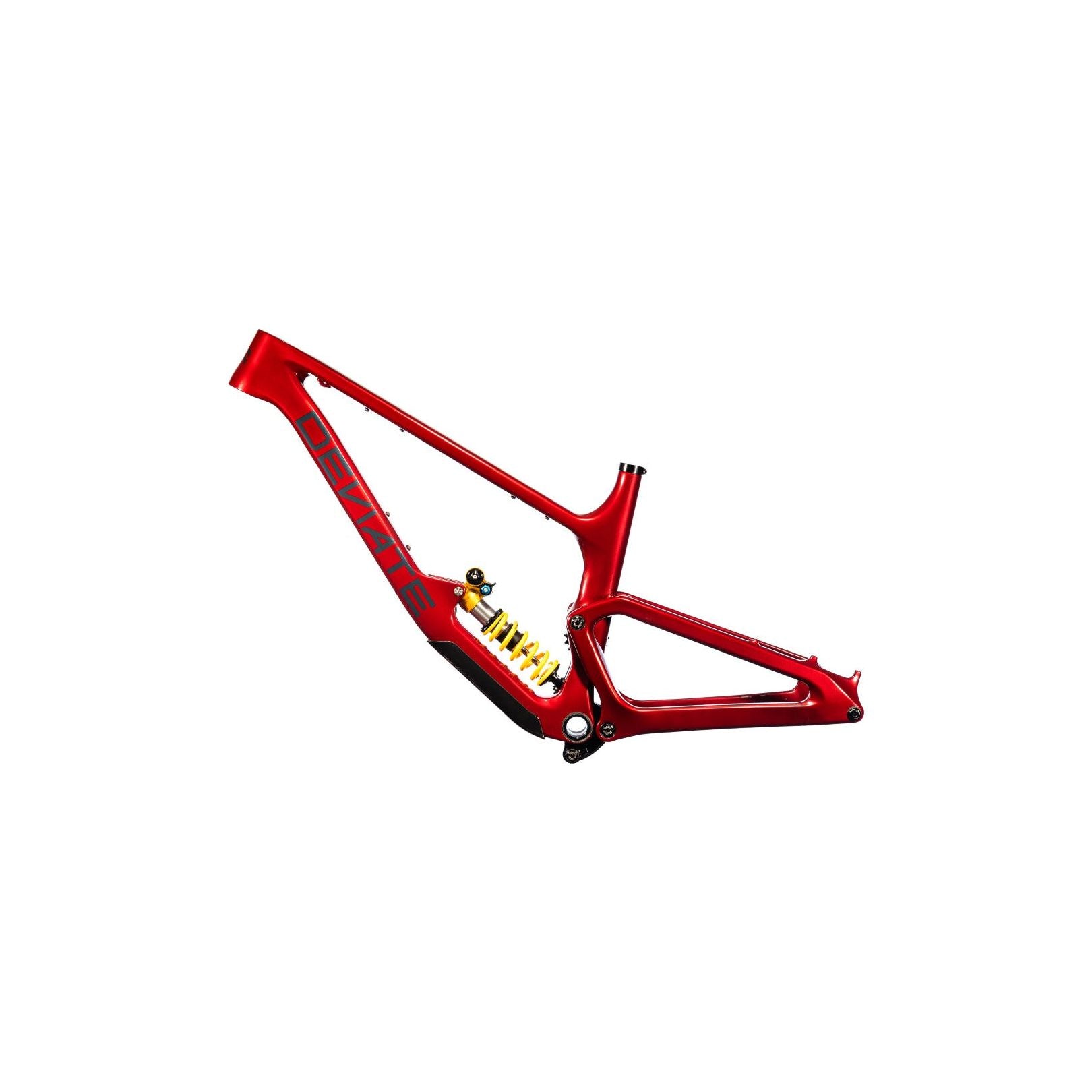

Deviate Claymore Frameset

Regular price
$4,250.00 CAD
Regular price
$4,250.00 CAD
Sale price
$4,250.00 CAD
Color
Size

PLEASE NOTE:

FRAMES SHOWING "IN STOCK" ARE EXPECTED WITHIN 4 WEEKS. PLEASE ALSO NOTE SHOCKS CAN BE PURCHASED SEPARATE ONCE A FRAME HAS BEEN ORDERED. AS OF 8:30AM PST 6/8/2022 WE HAVE SOLD OVER HALF OUR FIRST ALLOCATION, AND EXPECT TO SELL OUT WITHIN A COUPLE OF DAYS. ALSO NOTE REFUNDS WILL BE LESS ANY CREDIT CARD FEES PAID BY SMITH CREEK CYCLE AS PER OUR TERMS AND CONDITIONS.

WE WILL SHIP YOUR FRAME AS SOON AS POSSIBLE. IF YOU NEED A COMPLETE BUILD OR PARTS PLEASE CONTACT US AFTER RESERVING YOUR FRAME. EXPECT A COMPLETE BUILD TO BE BETWEEN 9,000-14,000 CAD.

Speed without sacrifice

Deviate wanted the Claymore to be the best handling, long-travel enduro bike out there. It’s the perfect combination of blindingly fast on the straights, slot-car accurate in the corners and capable of mixing it up with trail bikes on the ups.

The design brief was to create an enduro bike capable of winning on the toughest of enduro stages, with pedal performance to match a trail bike and an element of playfulness for those days when you’re not between the tape.

The Claymore was a medieval Scottish two-handed great sword. Extremely long - typically the blade was over 140cm in length - the Claymore was more than merely a sword: it was a symbol of strength and martial prowess, and an unmistakable link to the rugged Scottish Highlands for whoever bore it.

Deviate’s Claymore is the same, born in the rocks and roots of the Scottish Highlands, and the weapon of choice for the most brutal terrain anywhere in the world. Whether you get your kicks from plummeting down the nastiest, root strewn drops, or hurtling between the tapes so fast things get blurry around the edges, the Claymore is the bike for you.

Choo Choo - All aboard the high pivot train

To achieve this seemingly impossible brief, Deviate once again turned to a high pivot point suspension system that is now a feature of their entire line up, as well as featuring in the line up of many other manufacturers.

The difference is Deviate has been designing high pivot point bikes since 2016 - flying the flag of what back then was then a niche trend in suspension design. Forward to 2022 and high pivot bikes are the talk of the town and achieving success at the highest level. Our extensive experience designing nothing but high pivots means we can confidently claim that our system is the most robust and well engineered out there.

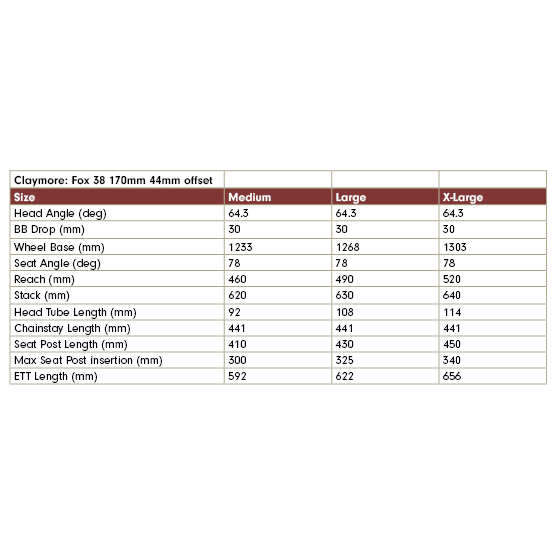

Geometry

Deviate designed the Claymore to be confidence inspiring, no matter what the terrain.

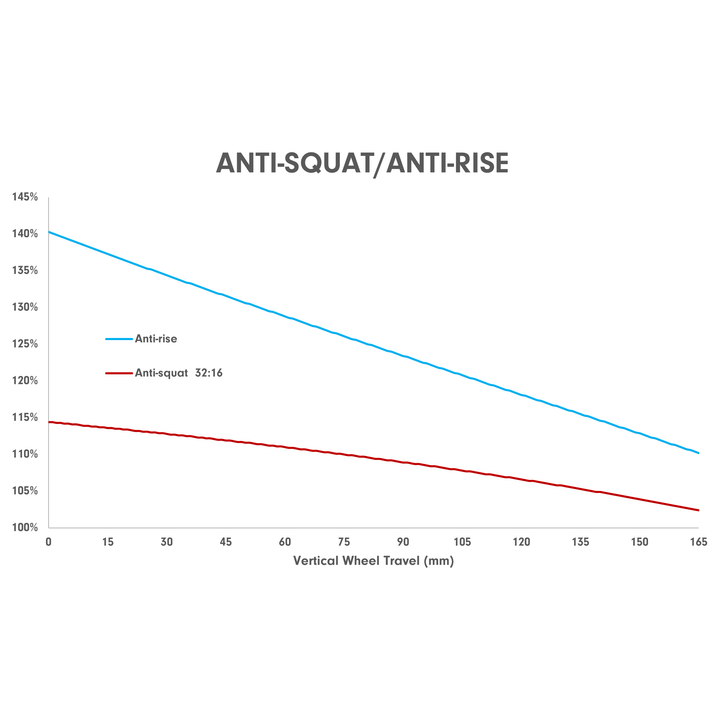

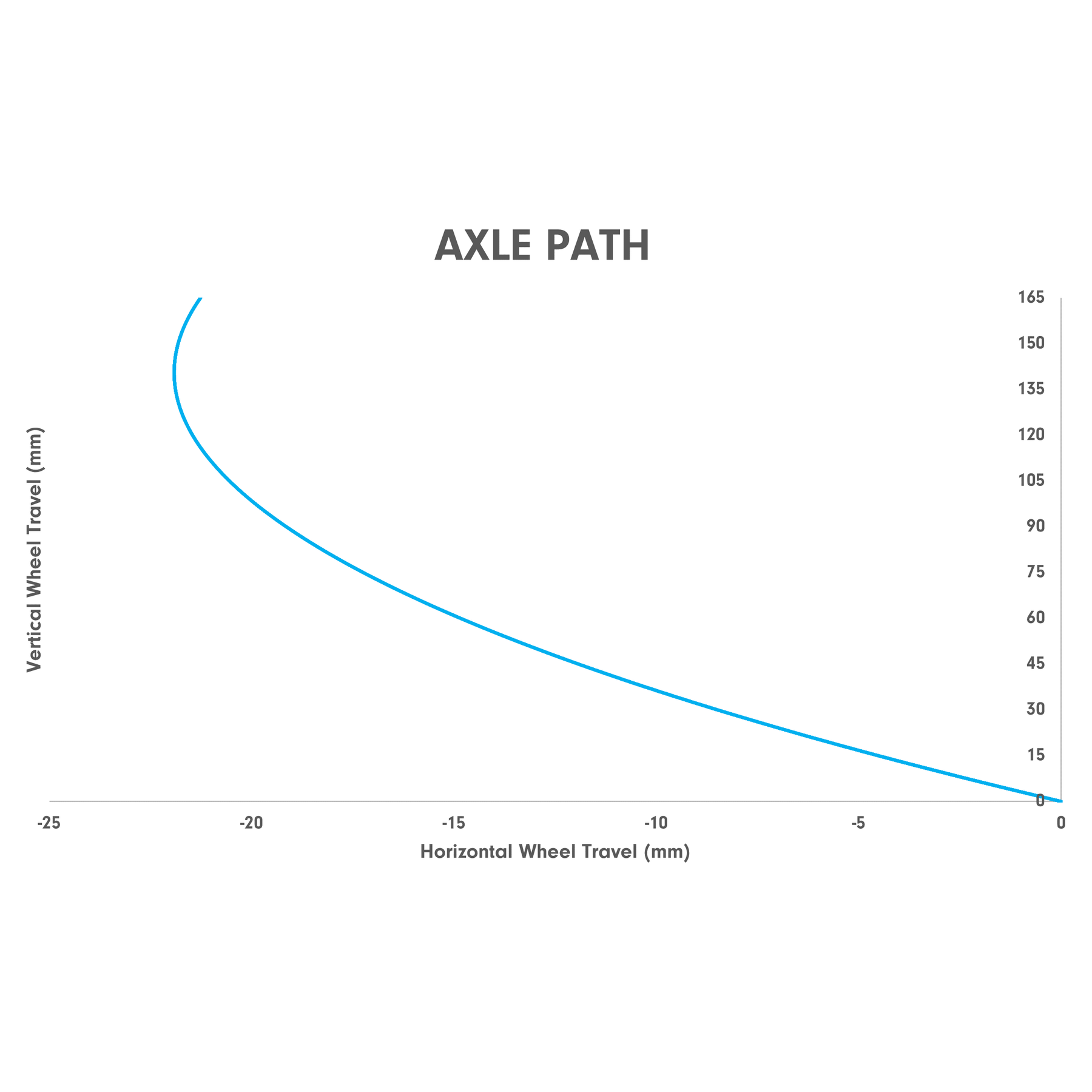

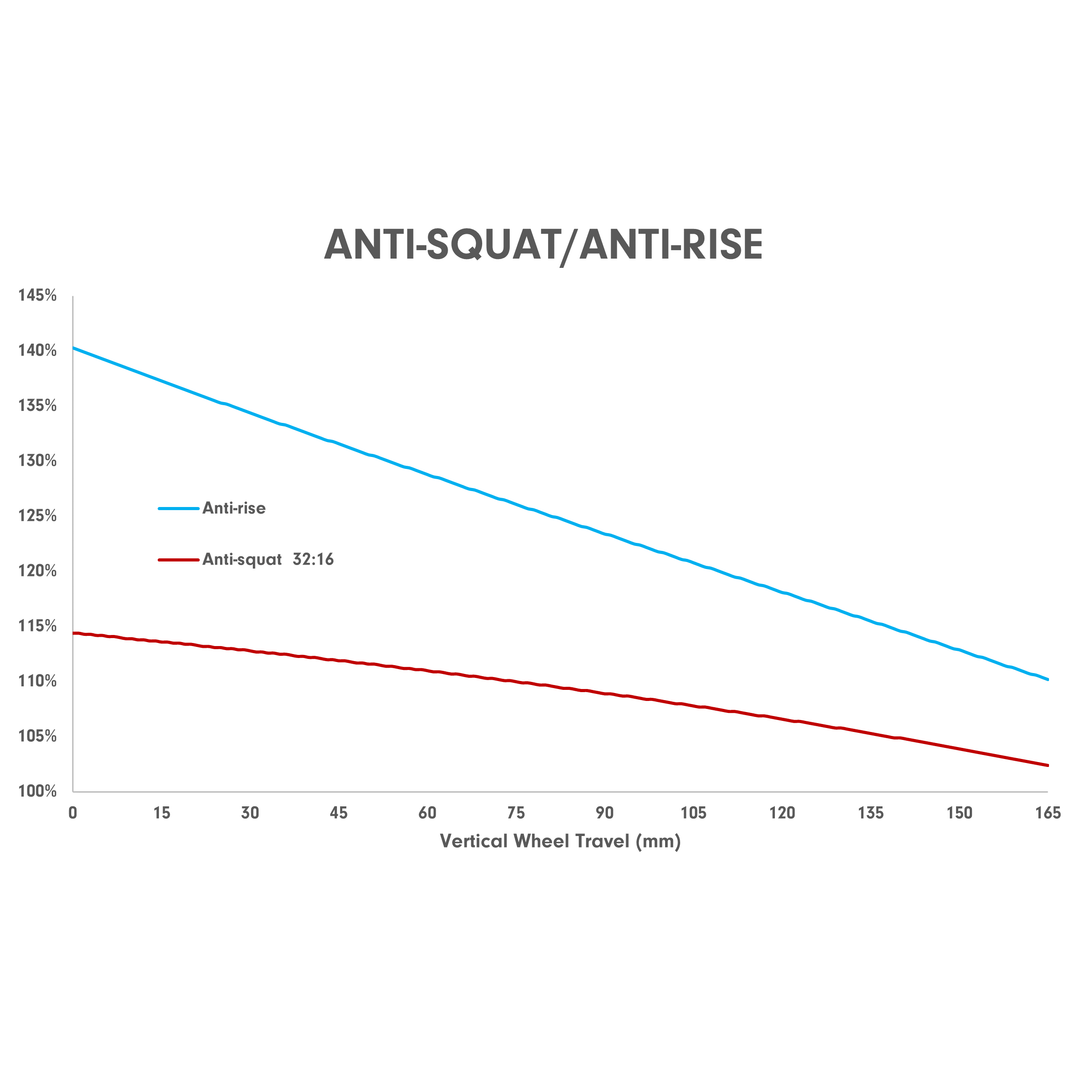

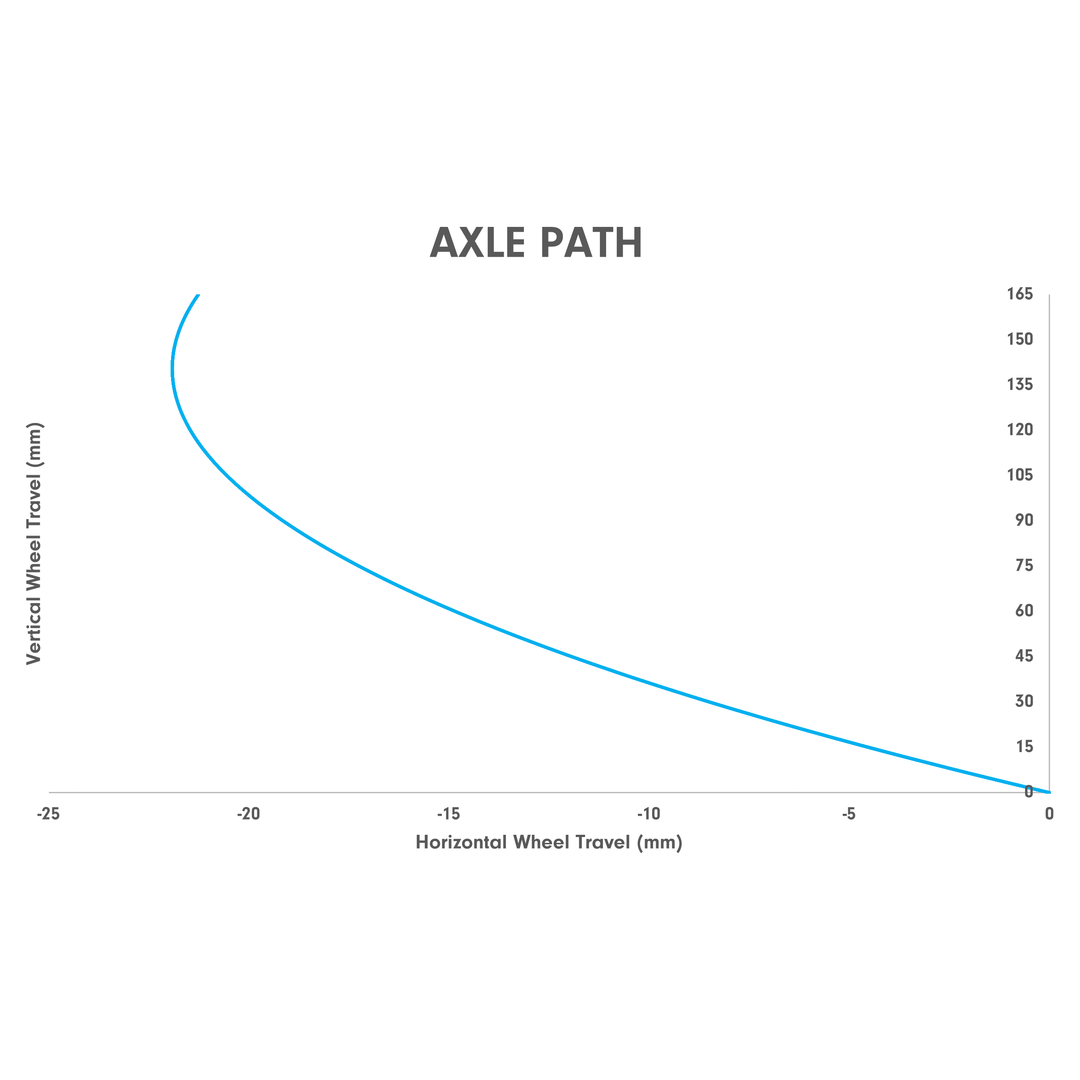

The unique kinematics of a high pivot point design maintains chassis stability and geometry under heavy braking. This allows the Claymore to offer stability, while maintaining sensible geometry.

Of course, the head-angle is slack, the reach is long and the seat tube is steep, to help with climbing. But it’s not too steep; not too slack; not too long. Not every enduro track or riding spot is the same, so we’ve designed the Claymore to hit the sweet spot where flat-out stability and snake-like agility meet



Frame details

Deviate has used the same high pivot platform first seen on the Highlander trail bike and kicked it up a gear.

The frame has been meticulously laid up so it’s strong enough for the toughest terrain, whilst also being light enough for long days in the saddle. Featuring fully sealed bearings with twin lip wiper seals and grease ports. After all, this is a bike designed to be ridden, and ridden hard, in the very worst conditions. The Claymore also keeps the innovative top tube cable channel of the Highlander, to hide the cables away whilst still keeping them accessible - and also increasing the strength of the frame.

  • Lifetime Warranty
  • Crash/damage replacement policy
  • High quality Enduro bearings throughout
  • Frame protection - bolt-on carbon downtube protector; bonded rubber chainstay protector
  • High quality Enduro bearings throughout
  • Twin lip wiper seals throughout
  • Silent 18t chain idler with twin outboard sealed bearings
  • Grease ports on all pivots and idler
  • Cable gutter for clean lines and external routing
  • 2.6” tyre clearance
  • Boost 148
  • Threaded BB
  • Water bottle compatible
  • Accessory mounting points

126 link chain - commonly available - no need to join chains



Leveraging an advantage

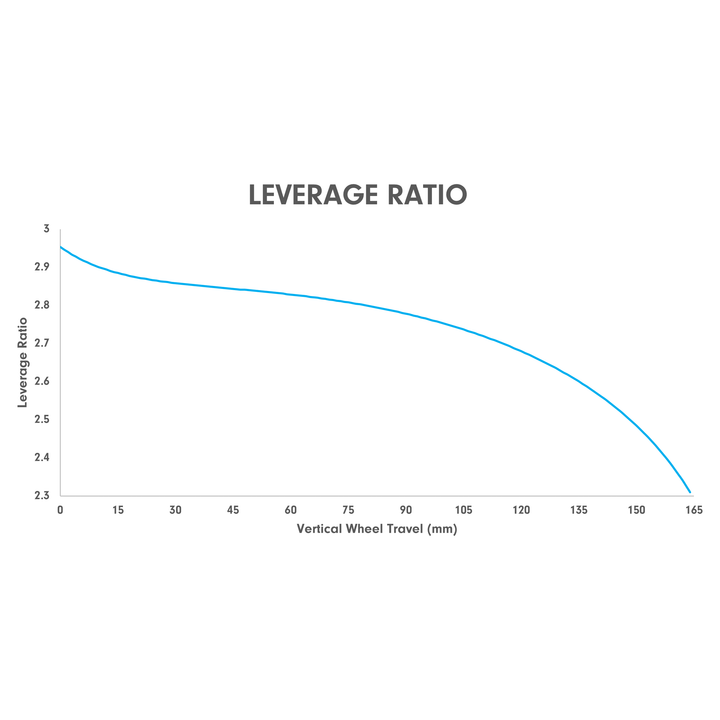

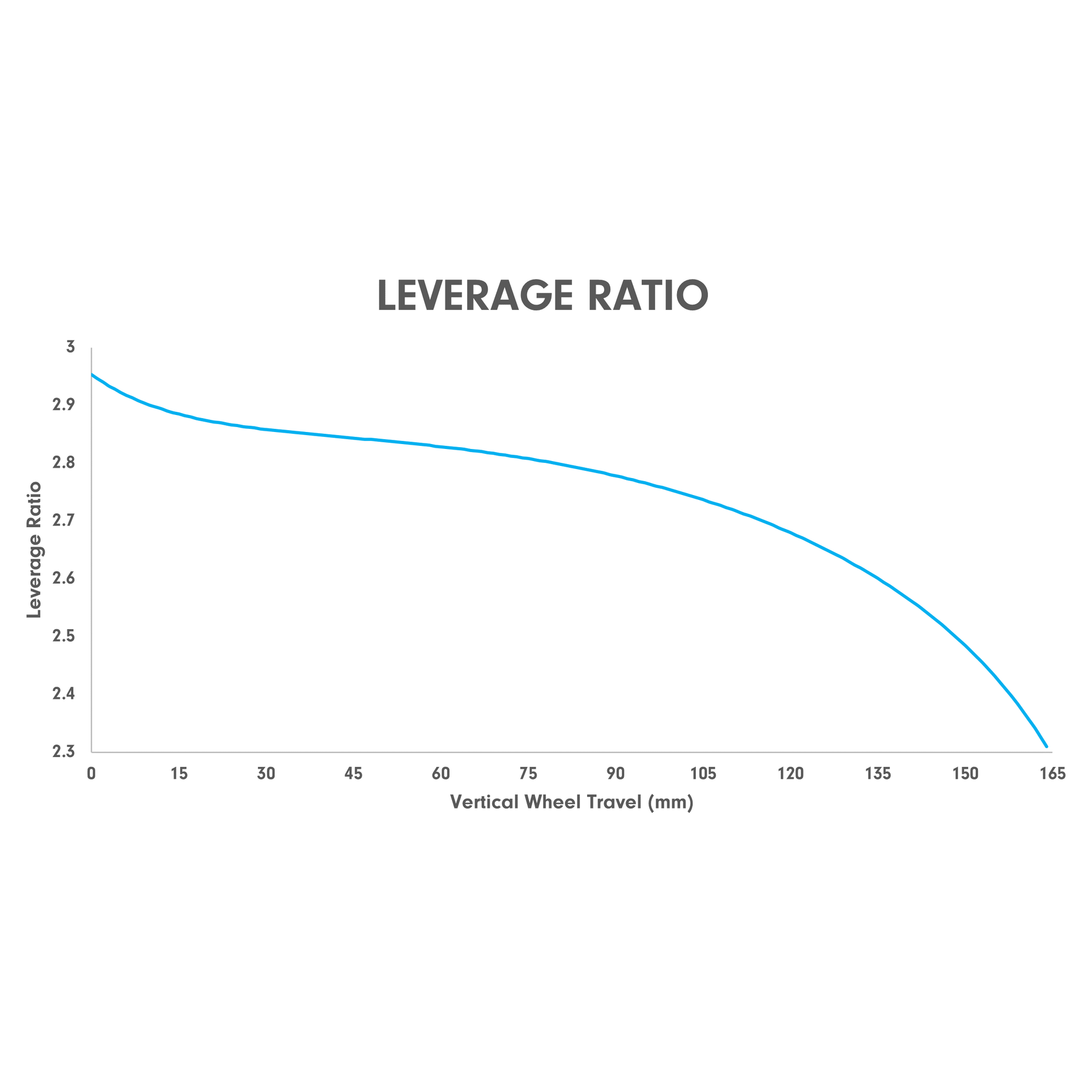

The Claymore's leverage curve has been carefully designed to provide a supple initial stroke, before becoming more progressive towards the end of the travel; comfort when you want it and control when you need it. The linkage is discreetly located around the bottom bracket, leading to an understated and subtle silhouette.



The Highlands of Scotland

Deviate Cycles, as a Scottish bike manufacturer, has developed and tested the Claymore in the rugged Scottish Highlands. The huge variety of terrain and challenging conditions make Scotland the perfect testing ground for any bike. As the saying goes "if it works in Scotland, it works anywhere".
